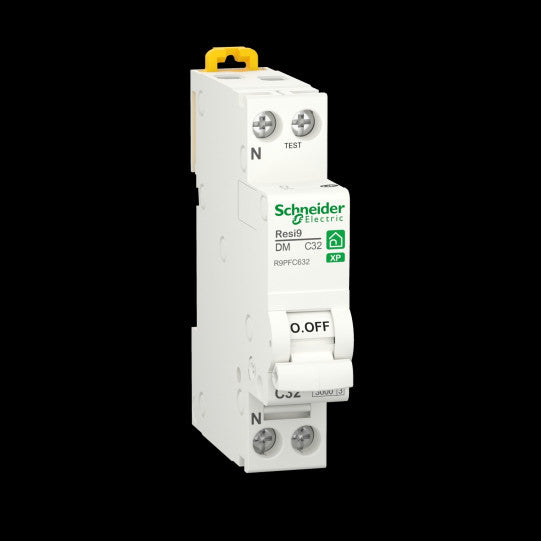

Miniature circuit-breaker, Resi9 DM, 1P + N, 32 A - C Curve, 230 V, 3000 A - R9PFC632
DESCRIPTION
| Range: | Resi9 |
|---|---|
| Product name: | Resi9 XP DM |
| Product or component type: | Miniature circuit-breaker |
| Device application: | Distribution |
| Poles description: | 1P + N |
| Number of protected poles: | 1 |
| Neutral position: | Left |
| [In] rated current: | 32 A at 30 °C conforming to EN/IEC 60898 |
| Network type: | AC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| Breaking capacity: | 3000 A Icn at 230 V AC 50 Hz conforming to EN/IEC 60898-1 |
| Standards: | EN/IEC 60898-1 |
| Product certifications: | CE |
| Quality labels: | NF |
| Network frequency: | 50 Hz |
|---|---|
| [Ue] rated operational voltage: | 230 V AC 50 Hz |
| Magnetic tripping limit: | 5...10 x In AC |
| Limitation class: | 3 conforming to EN/IEC 60898-1 |
| [Ui] rated insulation voltage: | 500 V |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 2 |
| Height: | 82 mm |
| Width: | 18 mm |
| Depth: | 76 mm |
| Colour: | White (RAL 9003) |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 10000 cycles 230 V AC 50 Hz conforming to EN/IEC 60898-1 |
| Connections - terminals: | Tunnel type terminals (top or bottom) - Tunnel type terminals (top or bottom) - |
| Wire stripping length: | 13 mm for top or bottom connection |
| Earth-leakage protection: | Without |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
|---|---|
| Pollution degree: | 2 conforming to EN/IEC 60898-1 |
| Overvoltage category: | III |
| Tropicalisation: | 2 conforming to IEC 60068-1 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -25...40 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481160553 |
|---|---|
| Substitution_texte: | Product temporarily unavailable. |
