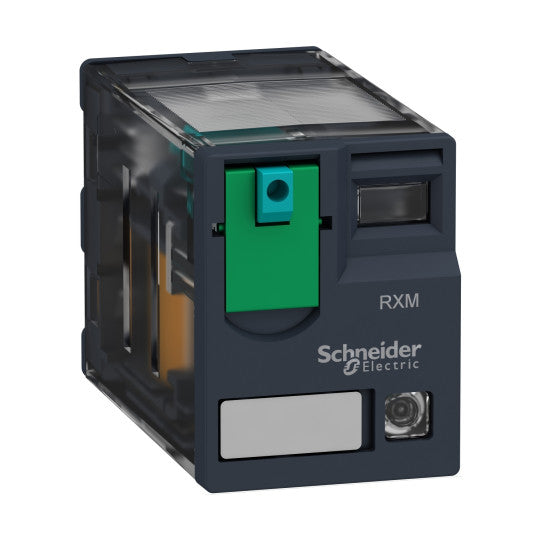

Miniature plug-in relay, 12 A, 2 CO, LED, 24 V DC - RXM2AB2BD
DESCRIPTION
| Range of product: | Harmony Electromechanical Relays |
|---|---|
| Series name: | Miniature |
| Product or component type: | Plug-in relay |
| Device short name: | RXM |
| Contacts type and composition: | 2 C/O |
| [Uc] control circuit voltage: | 24 V DC |
| [Ithe] conventional enclosed thermal current: | 12 A at -40...55 °C |
| Status LED: | With |
| Control type: | Lockable test button |
| Utilisation coefficient: | 20 % |
| [Uc] control circuit voltage: | 24 V |
| [In] rated current: | 12 A |
| Shape of pin: | Flat |
|---|---|
| [Ui] rated insulation voltage: | 250 V conforming to IEC300 V conforming to CSA300 V conforming to UL |
| [Uimp] rated impulse withstand voltage: | 4 kV during 1.2/50 µs |
| Contacts material: | AgNi |
| [Ie] rated operational current: | 12 A at 28 V (DC) NO conforming to IEC12 A at 250 V (AC) NO conforming to IEC6 A at 28 V (DC) NC conforming to IEC6 A at 250 V (AC) NC conforming to IEC12 A at 28 V (DC) conforming to UL12 A at 277 V (AC) conforming to UL |
| Maximum switching voltage: | 250 V conforming to IEC |
| Load current: | 12 A at 250 V AC12 A at 28 V DC |
| Maximum switching capacity: | 3000 VA/336 W |
| Minimum switching capacity: | 170 mW at 10 mA, 17 V |
| Operating rate: | |
| Mechanical durability: | 10000000 cycles |
| Electrical durability: | 100000 cycles for resistive load |
| Average coil consumption: | 0.9 W |
| Drop-out voltage threshold: | >= 0.1 Uc |
| Operating time: | 20 ms |
| Reset time: | 20 ms |
| Average resistance: | 650 Ohm at 20 °C +/- 10 % |
| Rated operational voltage limits: | 19.2...26.4 V DC |
| Safety reliability data: | B10d = 100000 |
| Protection category: | RT I |
| Test levels: | Level A group mounting |
| Operating position: | Any position |
| Product weight: | 0.037 kg |
| Device presentation: | Complete product |
| Compatibility code: | RXM |
| Dielectric strength: | 1300 V AC between contacts with micro disconnection2000 V AC between coil and contact2000 V AC between poles |
|---|---|
| Product certifications: | GOSTULLloyd'sCSACE |
| Standards: | CSA C22.2 No 14EN/IEC 61810-1UL 508 |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | -40...55 °C |
| Vibration resistance: | 3 gn, amplitude = +/- 1 mm (f = 10...150 Hz)5 cycles in operation5 gn, amplitude = +/- 1 mm (f = 10...150 Hz)5 cycles not operating |
| IP degree of protection: | IP40 conforming to EN/IEC 60529 |
| Shock resistance: | 10 gn for in operation30 gn for not operating |
| Pollution degree: | 3 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119403474 |
|---|
