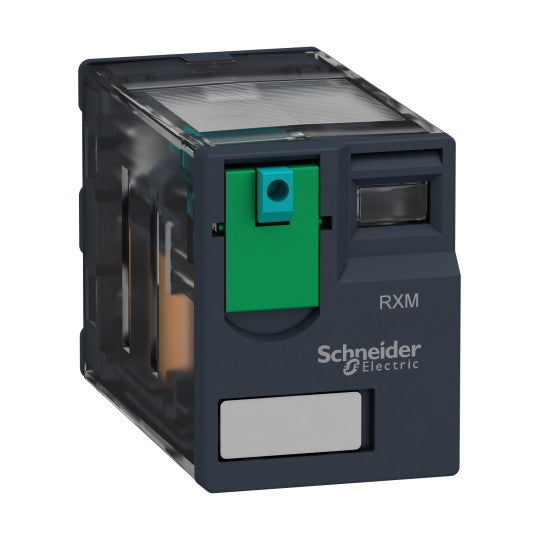

Miniature plug-in relay, 6 A, 4 CO, 12 V DC - RXM4AB1JD
SKU : RXM4AB1JD
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Miniature plug-in relay, 6 A, 4 CO, 12 V DC - RXM4AB1JD
DESCRIPTION
| Range of product: | Harmony Electromechanical Relays |
|---|---|
| Series name: | Miniature |
| Product or component type: | Plug-in relay |
| Device short name: | RXM |
| Contacts type and composition: | 4 C/O |
| [Uc] control circuit voltage: | 12 V DC |
| [Ithe] conventional enclosed thermal current: | 6 A at -40...55 °C |
| Status LED: | Without |
| Control type: | Lockable test button |
| Utilisation coefficient: | 20 % |
| [Uc] control circuit voltage: | 12 V |
| [In] rated current: | 6 A |
| Shape of pin: | Flat |
|---|---|
| [Ui] rated insulation voltage: | 250 V conforming to IEC300 V conforming to CSA300 V conforming to UL |
| [Uimp] rated impulse withstand voltage: | 2.5 kV during 1.2/50 µs |
| Contacts material: | AgNi |
| [Ie] rated operational current: | 3 A at 28 V (DC) NC conforming to IEC3 A at 250 V (AC) NC conforming to IEC6 A at 28 V (DC) NO conforming to IEC6 A at 250 V (AC) NO conforming to IEC6 A at 277 V (AC) conforming to UL8 A at 30 V (DC) conforming to UL |
| Maximum switching voltage: | 250 V conforming to IEC |
| Load current: | 6 A at 250 V AC6 A at 28 V DC |
| Maximum switching capacity: | 1500 VA/168 W |
| Minimum switching capacity: | 170 mW at 10 mA, 17 V |
| Operating rate: | |
| Mechanical durability: | 10000000 cycles |
| Electrical durability: | 100000 cycles for resistive load |
| Average coil consumption: | 0.9 W |
| Drop-out voltage threshold: | >= 0.1 Uc |
| Operating time: | 20 ms |
| Reset time: | 20 ms |
| Average resistance: | 160 Ohm at 20 °C +/- 10 % |
| Rated operational voltage limits: | 9.6...13.2 V DC |
| Safety reliability data: | B10d = 100000 |
| Protection category: | RT I |
| Test levels: | Level A group mounting |
| Operating position: | Any position |
| CAD overall height: | 79 mm |
| CAD overall depth: | 78.45 mm |
| Product weight: | 0.037 kg |
| Device presentation: | Complete product |
| Compatibility code: | RXM |
| Dielectric strength: | 1300 V AC between contacts with micro disconnection2000 V AC between coil and contact2000 V AC between poles |
|---|---|
| Product certifications: | Lloyd'sGOSTULCECSA |
| Standards: | EN/IEC 61810-1CSA C22.2 No 14UL 508 |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | -40...55 °C |
| Vibration resistance: | 3 gn, amplitude = +/- 1 mm (f = 10...150 Hz)5 cycles in operation5 gn, amplitude = +/- 1 mm (f = 10...150 Hz)5 cycles not operating |
| IP degree of protection: | IP40 conforming to EN/IEC 60529 |
| Shock resistance: | 10 gn for in operation30 gn for not operating |
| Pollution degree: | 2 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119403764 |
|---|
