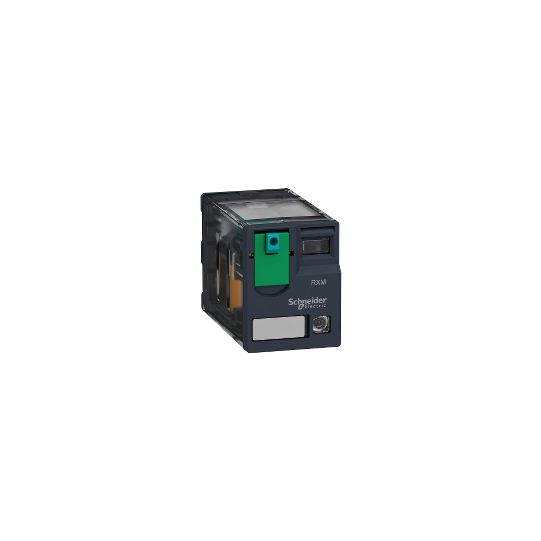

Miniature Plug-in relay - Zelio RXM 4 C/O 24 V DC 3 A with LED - RXM4GB2BD
SKU : RXM4GB2BD
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Miniature Plug-in relay - Zelio RXM 4 C/O 24 V DC 3 A with LED - RXM4GB2BD
DESCRIPTION
| Range of product: | Harmony Electromechanical Relays |
|---|---|
| Series name: | Miniature |
| Product or component type: | Plug-in relay |
| Device short name: | RXM |
| Contacts type and composition: | 4 C/O |
| [Uc] control circuit voltage: | 24 V DC |
| [Ithe] conventional enclosed thermal current: | 3 A at -40...55 °C |
| Status LED: | With |
| Control type: | Lockable test button |
| Utilisation coefficient: | 20 % |
| [Uc] control circuit voltage: | 24 V |
| [In] rated current: | 3 A |
| Shape of pin: | Flat |
|---|---|
| [Ui] rated insulation voltage: | 250 V conforming to IEC300 V conforming to CSA300 V conforming to UL |
| [Uimp] rated impulse withstand voltage: | 2.5 kV during 1.2/50 µs |
| Contacts material: | Gold plated bifurcated silver |
| [Ie] rated operational current: | 2 A at 28 V (DC) NO conforming to IEC2 A at 250 V (AC) NO conforming to IEC1 A at 28 V (DC) NC conforming to IEC1 A at 250 V (AC) NC conforming to IEC3 A at 28 V (DC) conforming to UL3 A at 277 V (AC) conforming to UL |
| Maximum switching voltage: | 250 V conforming to IEC |
| Load current: | 3 A at 250 V AC3 A at 28 V DC |
| Maximum switching capacity: | 750 VA/84 W |
| Minimum switching capacity: | 15 mW at 3 mA, 5 V |
| Operating rate: | |
| Mechanical durability: | 10000000 cycles |
| Electrical durability: | 100000 cycles for resistive load depending on mounting position and working environment |
| Average coil consumption: | 0.9 W |
| Drop-out voltage threshold: | >= 0.1 Uc |
| Operating time: | 20 ms |
| Reset time: | 20 ms |
| Average resistance: | 650 Ohm at 20 °C +/- 10 % |
| Rated operational voltage limits: | 19.2...26.4 V DC |
| Protection category: | RT I |
| Test levels: | Level A group mounting |
| Operating position: | Any position |
| Product weight: | 0.037 kg |
| Device presentation: | Complete product |
| Compatibility code: | RXM |
| Dielectric strength: | 1300 V AC between contacts with micro disconnection2000 V AC between coil and contact2000 V AC between poles |
|---|---|
| Product certifications: | Lloyd'sCSACEULGOST |
| Standards: | EN/IEC 61810-1CSA C22.2 No 14UL 508 |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | -40...55 °C |
| Vibration resistance: | 3 gn, amplitude = +/- 1 mm (f = 10...150 Hz)5 cycles in operation5 gn, amplitude = +/- 1 mm (f = 10...150 Hz)5 cycles not operating |
| IP degree of protection: | IP40 conforming to EN/IEC 60529 |
| Shock resistance: | 10 gn for in operation30 gn for not operating |
| Pollution degree: | 2 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119403986 |
|---|
