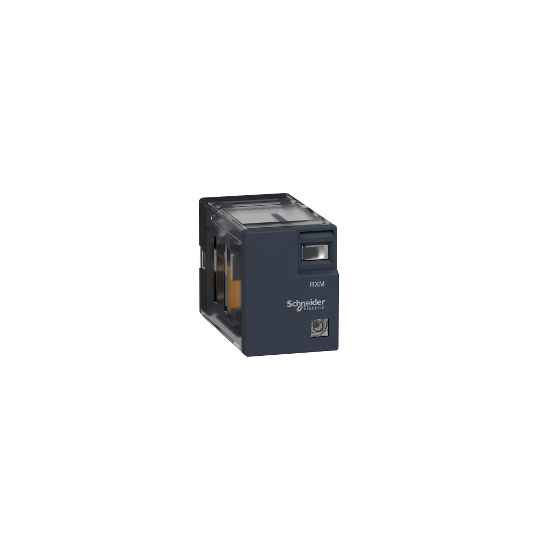

miniature plug-in relay - Zelio RXM4L - 4 C/O - 48 V DC - 3 A - with LED - RXM4LB2ED
SKU : RXM4LB2ED
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
miniature plug-in relay - Zelio RXM4L - 4 C/O - 48 V DC - 3 A - with LED - RXM4LB2ED
DESCRIPTION
| Range of product: | Harmony Electromechanical Relays |
|---|---|
| Series name: | Miniature |
| Product or component type: | Plug-in relay |
| Device short name: | RXM |
| Coil interference suppression: | Without |
| Utilisation coefficient: | 20 % |
| Sale per indivisible quantity: | 10 |
| [Uc] control circuit voltage: | 48 V |
| [In] rated current: | 3 A |
| Contacts type and composition: | 4 C/O |
|---|---|
| Contact operation: | Standard |
| [Uc] control circuit voltage: | 48 V DC |
| [Ithe] conventional enclosed thermal current: | 3 A at -40...55 °C |
| Status LED: | With |
| Control type: | Without push-button |
| [Ui] rated insulation voltage: | 250 V conforming to IEC |
| [Uimp] rated impulse withstand voltage: | 2.5 kV during 1.2/50 µs conforming to IEC 61810-7 |
| Contacts material: | Silver alloy (Ag/Ni) |
| [Ie] rated operational current: | 3 A (AC-1/DC-1) NO conforming to IEC1.5 A (AC-1/DC-1) NC conforming to IEC |
| Minimum switching current: | 10 mA |
| Maximum switching voltage: | 250 V AC28 V DC |
| Minimum switching voltage: | 17 V |
| Load current: | 3 A at 250 V AC3 A at 28 V DC |
| Maximum switching capacity: | 750 VA AC84 W DC |
| Minimum switching capacity: | 170 mW |
| Operating rate: | |
| Mechanical durability: | 10000000 cycles |
| Electrical durability: | 100000 cycles for resistive load |
| Average coil consumption: | 0.9 W, DC |
| Drop-out voltage threshold: | >= 0.1 Uc DC |
| Operating time: | 20 ms between coil de-energisation and making of the Off-delay contact20 ms between coil energisation and making of the On-delay contact |
| Average resistance: | 2600 Ohm at 23 °C +/- 10 % |
| Rated operational voltage limits: | 38.4...52.8 V DC |
| Protection category: | RT I |
| Test levels: | Level A group mounting |
| Operating position: | Any position |
| CAD overall width: | 21 mm |
| CAD overall height: | 27 mm |
| CAD overall depth: | 46 mm |
| Net weight: | 0.035 kg |
| Dielectric strength: | 2000 V AC between coil and contact with basic insulation2000 V AC between poles with basic insulation1000 V AC between contacts with micro disconnection |
| Safety reliability data: | B10d = 100000 |
| Compatibility code: | RXM |
| Standards: | EN/IEC 61810-1 (iss. 2)CE |
|---|---|
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | -40...55 °C |
| Vibration resistance: | 3 gn, amplitude = +/- 1 mm (f = 10...50 Hz)operating conforming to EN/IEC 60068-2-66 gn, amplitude = +/- 1 mm (f = 10...50 Hz)not operating conforming to EN/IEC 60068-2-6 |
| IP degree of protection: | IP40 conforming to EN/IEC 60529 |
| Pollution degree: | 2 |
| Shock resistance: | 30 gn for not operating conforming to EN/IEC 60068-2-2710 gn for in operation conforming to EN/IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389119215374 |
|---|
