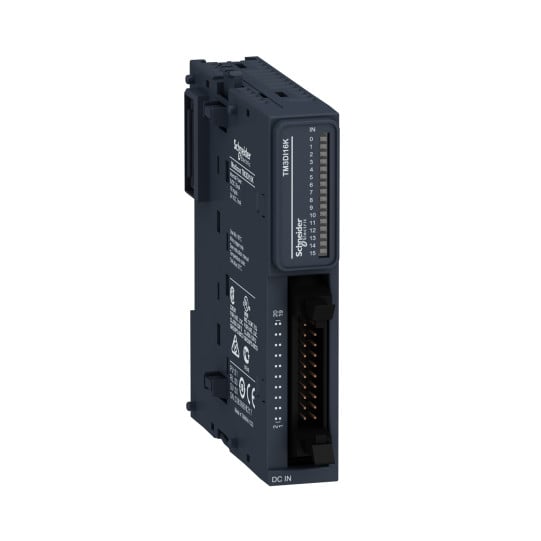

Modicon TM3 - 16 inputs (HE10) 24Vdc - TM3DI16K
DESCRIPTION
| Range of product: | Modicon TM3 |
|---|---|
| Product or component type: | Discrete input module |
| Range compatibility: | Modicon M241Modicon M251Modicon M221Modicon M262 |
| Discrete input number: | 16 for input conforming to IEC 61131-2 type 3 |
| Discrete input logic: | Sink or source (positive/negative) |
| Discrete input voltage: | 24 V |
| Discrete input current: | 5 mA for input |
| Discrete I/O number: | 16 |
|---|---|
| Current consumption: | 5 mA at 5 V DC via bus connector (at state off)0 mA at 24 V DC via bus connector (at state on)0 mA at 24 V DC via bus connector (at state off)35 mA at 5 V DC via bus connector (at state on) |
| Discrete input voltage type: | DC |
| Voltage state 1 guaranteed: | 15...28.8 V for input |
| Current state 1 guaranteed: | >= 2.5 mA (input) |
| Voltage state 0 guaranteed: | 0...5 V for input |
| Current state 0 guaranteed: | |
| Input impedance: | 4.4 kOhm |
| Response time: | 4 ms (turn-on)4 ms (turn-off) |
| Local signalling: | 1 LED per channel (green) for input status |
| Electrical connection: | HE-10 connectorfor inputs |
| Maximum cable distance between devices: | Unshielded cable: |
| Insulation: | Between input and internal logic at 500 V ACNon-insulated between inputs |
| Marking: | CE |
| Mounting support: | Top hat type TH35-15 rail conforming to IEC 60715Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height: | 90 mm |
| Depth: | 81.3 mm |
| Width: | 21.4 mm |
| Product weight: | 0.65 kg |
| Standards: | EN/IEC 61010-2-201EN/IEC 61131-2 |
|---|---|
| Product certifications: | cULusC-Tick |
| Resistance to electrostatic discharge: | 8 kV in air conforming to EN/IEC 61000-4-24 kV on contact conforming to EN/IEC 61000-4-2 |
| Resistance to electromagnetic fields: | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-33 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-31 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
| Resistance to magnetic fields: | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| Resistance to fast transients: | 1 kV for I/O conforming to EN/IEC 61000-4-4 |
| Surge withstand: | 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC |
| Resistance to conducted disturbances: | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-63 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission: | Radiated emissions - test level: 40 dB?V/m QP class A ( 10 m) at 30...230 MHz conforming to EN/IEC 55011Radiated emissions - test level: 47 dB?V/m QP class A ( 10 m) at 230...1000 MHz conforming to EN/IEC 55011 |
| Ambient air temperature for operation: | -10...35 °C vertical installation-10...55 °C horizontal installation |
| Ambient air temperature for storage: | -25...70 °C |
| Relative humidity: | 10...95 %, without condensation (in operation)10...95 %, without condensation (in storage) |
| IP degree of protection: | IP20 with protective cover in place |
| Pollution degree: | 2 |
| Operating altitude: | 0...2000 m |
| Storage altitude: | 0...3000 m |
| Vibration resistance: | 3.5 mm at 5...8.4 Hz on DIN rail3 gn at 8.4...150 Hz on DIN rail3.5 mm at 5...8.4 Hz on panel3 gn at 8.4...150 Hz on panel |
| Shock resistance: | 15 gn for 11 ms |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480611407 |
|---|
