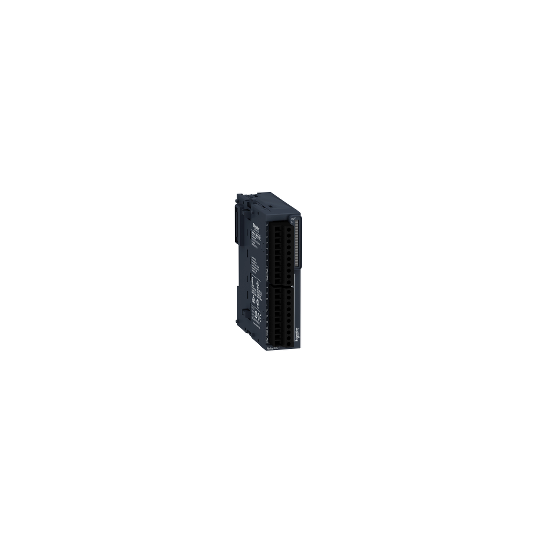

Modicon TM3 - 16 relay outputs (screw) 24Vdc - TM3DQ16R
SKU : TM3DQ16R
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Modicon TM3 - 16 relay outputs (screw) 24Vdc - TM3DQ16R
DESCRIPTION
| Range of product: | Modicon TM3 |
|---|---|
| Product or component type: | Discrete output module |
| Range compatibility: | Modicon M241Modicon M251Modicon M221Modicon M262 |
| Discrete output type: | Relay normally open |
| Discrete output number: | 16 |
| Discrete output logic: | Positive or negative |
| Discrete output voltage: | 240 V AC for relay output30 V DC for relay output |
| Discrete output current: | 2000 mA for relay output |
| Discrete I/O number: | 16 |
|---|---|
| Current consumption: | 0 mA at 24 V DC via bus connector (at state off)75 mA at 24 V DC via bus connector (at state on) |
| Response time: | 10 ms (turn-on)5 ms (turn-off) |
| Mechanical durability: | 20000000 cycles |
| Minimum load: | 10 mA at 5 V DC for relay output |
| Local signalling: | 1 LED per channel (green) for output status |
| Electrical connection: | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs |
| Maximum cable distance between devices: | Unshielded cable: |
| Insulation: | Between output and internal logic at 2300 V ACBetween outputs at 750 V ACBetween output groups at 1500 V AC |
| Marking: | CE |
| Mounting support: | Top hat type TH35-15 rail conforming to IEC 60715Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height: | 90 mm |
| Depth: | 84.6 mm |
| Width: | 27.4 mm |
| Net weight: | 0.145 kg |
| Standards: | EN/IEC 61010-2-201EN/IEC 61131-2 |
|---|---|
| Product certifications: | C-TickcULus |
| Resistance to electrostatic discharge: | 8 kV in air conforming to EN/IEC 61000-4-24 kV on contact conforming to EN/IEC 61000-4-2 |
| Resistance to electromagnetic fields: | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-33 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-31 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
| Resistance to magnetic fields: | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| Resistance to fast transients: | 2 kV for relay output conforming to EN/IEC 61000-4-4 |
| Surge withstand: | 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC |
| Resistance to conducted disturbances: | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-63 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission: | Radiated emissions - test level: 40 dB?V/m QP class A ( 10 m) at 30...230 MHz conforming to EN/IEC 55011Radiated emissions - test level: 47 dB?V/m QP class A ( 10 m) at 230...1000 MHz conforming to EN/IEC 55011 |
| Ambient air temperature for operation: | -10...35 °C vertical installation-10...55 °C horizontal installation |
| Ambient air temperature for storage: | -25...70 °C |
| Relative humidity: | 10...95 %, without condensation (in operation)10...95 %, without condensation (in storage) |
| IP degree of protection: | IP20 with protective cover in place |
| Pollution degree: | 2 |
| Operating altitude: | 0...2000 m |
| Storage altitude: | 0...3000 m |
| Vibration resistance: | 3.5 mm at 5...8.4 Hz on DIN rail3 gn at 8.4...150 Hz on DIN rail3.5 mm at 5...8.4 Hz on panel3 gn at 8.4...150 Hz on panel |
| Shock resistance: | 15 gn for 11 ms |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480611445 |
|---|
