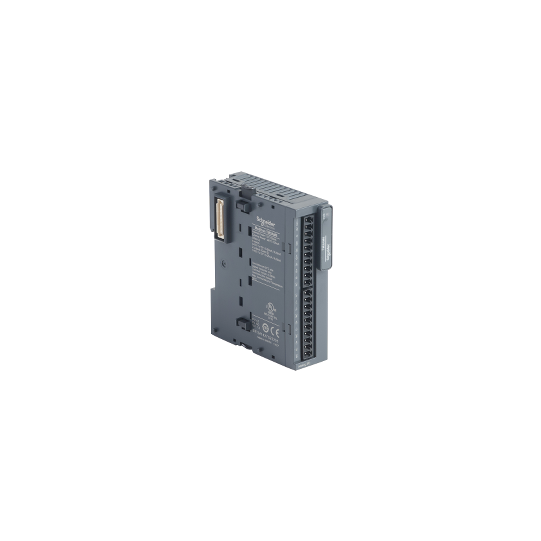

Modicon TM3 - 4 analog inputs, 2 analog output (screw) 24Vdc - TM3AM6
DESCRIPTION
| Range of product: | Modicon TM3 |
|---|---|
| Product or component type: | Input/output analog module |
| Range compatibility: | Modicon M221Modicon M241Modicon M251Modicon M262 |
| Analogue input number: | 4 |
| Analogue input type: | current 4...20 mA current 0...20 mA voltage 0...10 V voltage - 10...10 V |
| Analogue output number: | 2 |
| Analogue output type: | Current: 4...20 mACurrent: 0...20 mAVoltage: 0...10 VVoltage: - 10...10 V |
| Analogue input resolution: | 12 bits11 bits + sign |
|---|---|
| Permissible continuous overload: | 13 V, analogue input type: voltage40 mA, analogue input type: current |
| Input impedance: | >= 1 MOhm voltage |
| Analogue output resolution: | 12 bits11 bits + sign |
| LSB value: | 2.44 mV 0...10 Vvoltage4.88 mV - 10...10 Vvoltage4.88 µA 0...20 mAcurrent3.91 µA 4...20 mAcurrent |
| Load type: | Resistive |
| Load impedance ohmic: | 1 kOhm voltage300 Ohm current |
| Stabilisation time: | 1 ms |
| Conversion time: | 1 ms + 1 ms per channel + 1 controller cycle time |
| Sampling duration: | 1 ms10 ms |
| Absolute accuracy error: | +/- 1 % of full scale+/- 0.2 % of full scale at 25 °C |
| Temperature drift: | +/- 0.01 %FS/°C |
| Repeat accuracy: | +/-0.5 %FS for input+/-0.5 %FS for output |
| Non-linearity: | +/- 0.2 %FS |
| Output ripple: | 20 mV |
| Cross talk: | |
| [Us] rated supply voltage: | 24 V DC |
| Supply voltage limits: | 20.4...28.8 V |
| Type of cable: | Twisted shielded pairs cable |
| Current consumption: | 45 mA at 5 V DC via bus connector no load55 mA at 5 V DC via bus connector full load55 mA at 24 V DC via external supply no load100 mA at 24 V DC via external supply full load |
| Local signalling: | 1 LED (green) for PWR |
| Electrical connection: | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs, outputs and supply |
| Insulation: | Between input and supply at 1500 V ACBetween input and internal logic at 500 V ACBetween output and supply at 1500 V ACBetween output and internal logic at 500 V AC |
| Marking: | CE |
| Surge withstand: | 1 kV power supply common mode conforming to EN/IEC 61000-4-50.5 kV power supply differential mode conforming to EN/IEC 61000-4-51 kV I/O common mode conforming to EN/IEC 61000-4-50.5 kV I/O differential mode conforming to EN/IEC 61000-4-5 |
| Mounting support: | Top hat type TH35-15 rail conforming to IEC 60715Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height: | 90 mm |
| Depth: | 70 mm |
| Width: | 23.6 mm |
| Net weight: | 0.11 kg |
| Standards: | EN/IEC 61131-2 |
|---|---|
| Product certifications: | CEUKCARCMEACcULuscULus HazLoc |
| Resistance to electrostatic discharge: | 8 kV in air conforming to EN/IEC 61000-4-24 kV on contact conforming to EN/IEC 61000-4-2 |
| Resistance to electromagnetic fields: | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-33 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-31 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
| Resistance to magnetic fields: | 30 A/m conforming to EN/IEC 61000-4-8 |
| Resistance to fast transients: | 1 kV (I/O) conforming to EN/IEC 61000-4-4 |
| Resistance to conducted disturbances: | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-63 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission: | Radiated emissions - test level: 40 dB?V/m QP class A ( 10 m) at 30...230 MHz conforming to EN/IEC 55011Radiated emissions - test level: 47 dB?V/m QP class A ( 10 m) at 230...1000 MHz conforming to EN/IEC 55011 |
| Immunity to microbreaks: | 10 ms |
| Ambient air temperature for operation: | -10...55 °C horizontal installation-10...35 °C vertical installation |
| Ambient air temperature for storage: | -25...70 °C |
| Relative humidity: | 10...95 %, without condensation (in operation)10...95 %, without condensation (in storage) |
| IP degree of protection: | IP20 |
| Pollution degree: | 2 |
| Operating altitude: | 0...2000 m |
| Storage altitude: | 0...3000 m |
| Vibration resistance: | 3.5 mm at 5...8.4 Hz on DIN rail3 gn at 8.4...150 Hz on DIN rail |
| Shock resistance: | 15 gn for 11 ms |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480648946 |
|---|
