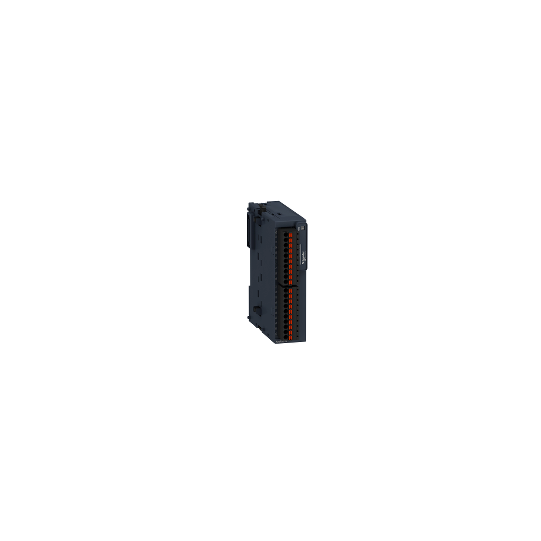

Modicon TM3, module 8 entrées température, thermocouple ou thermistance, ressort - TM3TI8TG
DESCRIPTION
| Range of product: | Modicon TM3 |
|---|---|
| Product or component type: | Analog input module |
| Range compatibility: | Modicon M221Modicon M241Modicon M251Modicon M262 |
| Analogue input number: | 8 |
| Analogue input type: | thermocouple - 200...1000 °C with thermocouple J thermocouple - 200...1300 °C with thermocouple K thermocouple 0...1760 °C with thermocouple R thermocouple 0...1760 °C with thermocouple S thermocouple 0...1820 °C with thermocouple B thermocouple - 200...400 °C with thermocouple T thermocouple - 200...1300 °C with thermocouple N thermocouple - 200...800 °C with thermocouple ENTC 10k thermistor -90...150 °CPTC thermistor 100...10000 Ohm |
| Analogue input resolution: | 16 bits15 bits + sign |
|---|---|
| Input impedance: | >= 1 MOhm thermocouple>= 1 MOhm temperature probe>= 1 MOhm thermistor |
| LSB value: | 0.1 °Cthermocouple0.1 °C with NTC probe1 Ohm with PTC/NTC probe |
| Conversion time: | 100 ms + 100 ms per channel + 1 controller cycle time |
| Sampling duration: | 100 ms |
| Absolute accuracy error: | +/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C+/- 6 °C at 25 °C for thermocouple R, S 0...200 °C+/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C+/- 0.2 % of full scale at 25 °C for thermocouple B 300...1820 °C+/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C+/- 0.2 % of full scale at 25 °C for thermocouple K 0...1300 °C+/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C+/- 0.2 % of full scale at 25 °C for thermocouple J 0...1000 °C+/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C+/- 0.2 % of full scale at 25 °C for thermocouple E 0...800 °C+/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C+/- 0.2 % of full scale at 25 °C for thermocouple T 0...400 °C+/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C+/- 0.2 % of full scale at 25 °C for thermocouple N 0...1300 °C |
| Temperature drift: | +/- 0.01 %FS/°C |
| Repeat accuracy: | +/-0.5 %FS |
| Non-linearity: | +/- 0.2 %FS |
| Cross talk: | |
| [Us] rated supply voltage: | 24 V DC |
| Supply voltage limits: | 20.4...28.8 V |
| Type of cable: | Twisted shielded pairs cable |
| Current consumption: | 30 mA at 24 V DC via external supply45 mA at 5 V DC via bus connector40 mA at 5 V DC via bus connector |
| Local signalling: | 1 LED (green) for PWR |
| Electrical connection: | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
| Insulation: | Between input and supply at 1500 V ACBetween input and internal logic at 500 V AC |
| Marking: | CE |
| Surge withstand: | 1 kV power supply common mode conforming to EN/IEC 61000-4-50.5 kV power supply differential mode conforming to EN/IEC 61000-4-51 kV input common mode conforming to EN/IEC 61000-4-5 |
| Mounting support: | Top hat type TH35-15 rail conforming to IEC 60715Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height: | 90 mm |
| Depth: | 70 mm |
| Width: | 23.6 mm |
| Net weight: | 0.1 kg |
| Standards: | EN/IEC 61131-2EN/IEC 61010-2-201 |
|---|---|
| Resistance to electrostatic discharge: | 8 kV in air conforming to EN/IEC 61000-4-24 kV on contact conforming to EN/IEC 61000-4-2 |
| Resistance to electromagnetic fields: | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-33 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-31 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
| Resistance to magnetic fields: | 30 A/m conforming to EN/IEC 61000-4-8 |
| Resistance to fast transients: | 1 kV (I/O) conforming to EN/IEC 61000-4-4 |
| Resistance to conducted disturbances: | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-63 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission: | Radiated emissions - test level: 40 dB?V/m QP class A ( 10 m) at 30...230 MHz conforming to EN/IEC 55011Radiated emissions - test level: 47 dB?V/m QP class A ( 10 m) at 230...1000 MHz conforming to EN/IEC 55011 |
| Immunity to microbreaks: | 10 ms |
| Ambient air temperature for operation: | -10...55 °C horizontal installation-10...35 °C vertical installation |
| Ambient air temperature for storage: | -25...70 °C |
| Relative humidity: | 10...95 %, without condensation (in operation)10...95 %, without condensation (in storage) |
| IP degree of protection: | IP20 |
| Pollution degree: | 2 |
| Operating altitude: | 0...2000 m |
| Storage altitude: | 0...3000 m |
| Vibration resistance: | 3.5 mm at 5...8.4 Hz on DIN rail3 gn at 8.4...150 Hz on DIN rail |
| Shock resistance: | 15 gn for 11 ms |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480649035 |
|---|
