Modular 1-phase current control relay, 5 A, 2 CO, 0.15…15 A,, 24…240 V AC/DC - RM35JA32MR
SKU : RM35JA32MR
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation

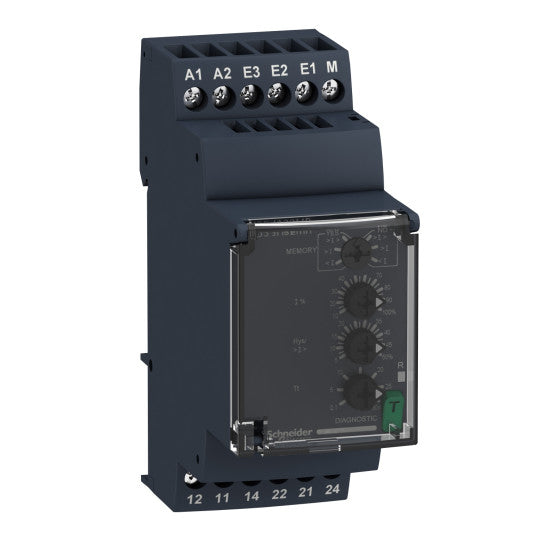

Modular 1-phase current control relay, 5 A, 2 CO, 0.15…15 A,, 24…240 V AC/DC - RM35JA32MR
DESCRIPTION
| Range of product: | Harmony Control Relays |
|---|---|
| Product or component type: | Current control relay |
| Relay type: | Current control relay |
| Relay name: | RM35JA |
| Relay monitored parameters: | Overcurrent or undercurrent in window modeOvercurrent or undercurrent detection |
| Time delay type: | Adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt |
| Switching capacity in VA: | 2000 VA |
| Measurement range: | 0.15...1.5 A E1-M terminals0.5...5 A E2-M terminals1.5...15 A E3-M terminals150 mA...15 A current AC/DC 50/60 Hz |
| Contacts type and composition: | 2 C/O |
| Connections - terminals: | Screw connectors |
| [Uc] control circuit voltage: | 24...240 V |
| [In] rated current: | 8 A |
| Reset time: | 1500 ms at maximum voltage |
|---|---|
| Maximum switching voltage: | 250 V AC |
| Minimum switching current: | 10 mA at 5 V DC |
| Maximum switching current: | 8 A AC |
| [Us] rated supply voltage: | 24...240 V AC/DC 50/60 Hz +/- 10 % |
| Supply voltage limits: | 20.4...264 V AC/DC |
| Control circuit voltage limits: | - 15 % + 10 % Un |
| Power consumption in VA: | 3.5 VA AC |
| Maximum power consumption in W: | 1.5 W DC |
| Resistance across terminals: | 0.005 Ohm at E3-M terminals0.015 Ohm at E2-M terminals0.05 Ohm at E1-M terminals |
| Output contacts: | 2 C/O |
| Nominal output current: | 8 A |
| Internal input resistance: | 0.015 Ohm0.005 Ohm0.05 Ohm |
| Setting accuracy of the switching threshold: | +/- 10 % of the full scale |
| Switching threshold drift: | |
| Setting accuracy of time delay: | 10 P |
| Time delay drift: | |
| Hysteresis: | 5...50 % adjustable of threshold setting for overcurrent or undercurrent detection3 % fixed of full scale for window mode |
| Run-up delay at power-up: | 0.3 s |
| Maximum measuring cycle: | 100 ms measurement cycle as true rms value |
| Repeat accuracy: | +/- 0.5 % for input and measurement circuit+/- 2 % for time delay |
| Measurement error: | 0.05 %/°C with temperature variation |
| Response time: | |
| Threshold setting: | 10...100 % |
| Overvoltage category: | III conforming to IEC 60664-1III conforming to UL 508 |
| Insulation resistance: | > 100 MOhm at 500 V DC conforming to IEC 60255-27 |
| Insulation: | Between supply and measurement |
| Mounting position: | Any position |
| Connections - terminals: | Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable endScrew terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable endScrew terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable endScrew terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end |
| Tightening torque: | 0.6...1 N.m conforming to IEC 60947-1 |
| Housing material: | Self-extinguishing plastic |
| Status LED: | LED (yellow)relay ONLED (green)power ON |
| Mounting support: | 35 mm DIN rail conforming to EN/IEC 60715 |
| Electrical durability: | 100000 cycles |
| Mechanical durability: | 10000000 cycles |
| Utilisation category: | AC-15 conforming to IEC 60947-5-1DC-13 conforming to IEC 60947-5-1AC-1 conforming to IEC 60947-4-1DC-1 conforming to IEC 60947-4-1 |
| Safety reliability data: | MTTFd = 296.8 yearsB10d = 270000 |
| Contacts material: | Cadmium free |
| Width: | 35 mm |
| Product weight: | 0.12 kg |
| Functionality: | Overcurrent or undercurrent detection |
| Compatibility code: | RM3 |
| Immunity to microbreaks: | 50 ms |
|---|---|
| Electromagnetic compatibility: | Immunity for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-1Immunity for industrial environments conforming to EN/IEC 61000-6-2Emission standard for industrial environments conforming to EN/IEC 61000-6-4Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3Electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4Electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4Surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5Surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5Conducted and radiated emissions class B group 1 conforming to CISPR 11Conducted and radiated emissions class B conforming to CISPR 22Emission standard for residential, commercial and light-industrial environments (except radiated emission) conforming to EN/IEC 61000-6-3 |
| Standards: | EN/IEC 60255-1 |
| Product certifications: | CEGLCCCEACRCMULCSA |
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -20...50 °C at 60 Hz-20...60 °C at 50 Hz AC/DC |
| Environmental characteristic: | 3K3 C |
| Relative humidity: | 93...97 % at 25...55 °C conforming to IEC 60068-2-30 |
| Vibration resistance: | 0.075 mm (f= 10...58.1 Hz) not in operation conforming to IEC 60068-2-61 gn (f= 10...58.1 Hz) not in operation conforming to IEC 60068-2-60.035 mm (f= 58.1...150 Hz) in operation conforming to IEC 60068-2-60.5 gn (f= 58.1...150 Hz) in operation conforming to IEC 60068-2-6 |
| Shock resistance: | 15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-275 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 |
| IP degree of protection: | IP20 (terminals) conforming to IEC 60529IP50 (front panel) conforming to IEC 60529IP30 (housing) conforming to IEC 60529 |
| Pollution degree: | 3 conforming to IEC 60664-13 conforming to UL 508 |
| Dielectric test voltage: | 2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480792304 |
|---|
