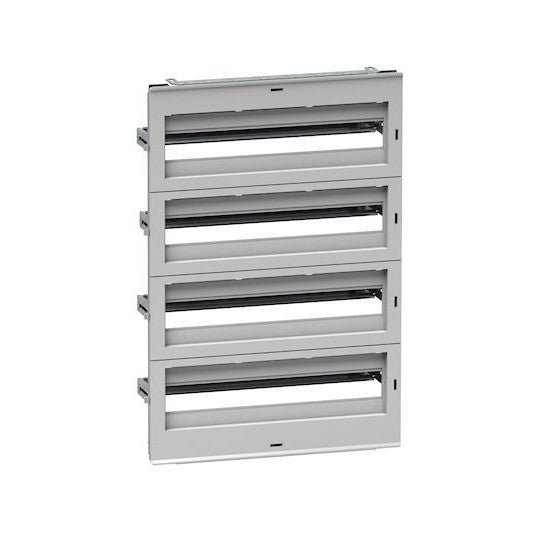

Modular distribution chassis 88 modules for NSYPLM75,NSYS3D75,NSYCRN75,NSYS3X75 - NSYDLA88G
SKU : NSYDLA88G
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Modular distribution chassis 88 modules for NSYPLM75,NSYS3D75,NSYCRN75,NSYS3X75 - NSYDLA88G
DESCRIPTION
| Range: | Spacial |
|---|---|
| Accessory / separate part category: | Mounting accessory |
| Device application: | Multi-purposeModular distribution application |
| Product or component type: | Chassis |
| Device short name: | DLA |
| Enclosure nominal dimensions: | - |
| Mounting location: | Front of enclosure |
| Range compatibility: | Spacial S3DSpacial CRNSpacial S3XThalassa PLM |
| Device composition: | 1 chassis structure4 front panels with 35 mm DIN rail2 finish cover1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² |
| Quantity per set: | Set of 1 |
| Material: | Front panel: self-extinguishing insulatingChassis structure and rails: steel |
|---|---|
| Colour: | Front panel: grey (RAL 7035) |
| Fixing mode: | By fixing element - on front with supports location |
| Adjustment: | In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows: | 4 |
| Total number of 18 mm modules: | 86 |
| Type of front plate: | Plain and cut-out plates |
| Number of cut-out: | 4 cut-outs |
| Height: | 680 mm |
| Width: | 460 mm |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure: | ENVPEP100104EN |
| Code EAN: | 3606480773877 |
|---|
