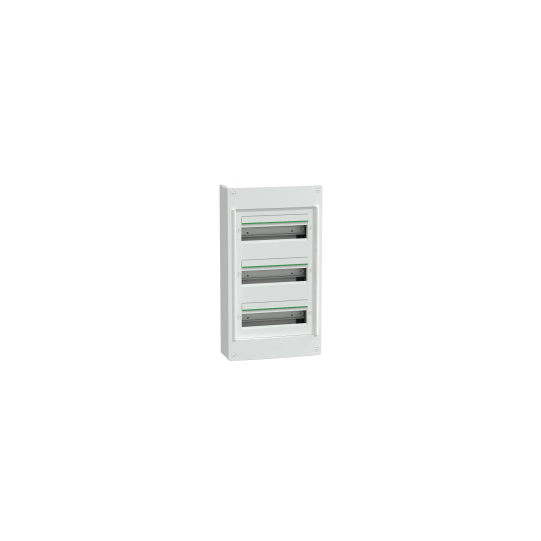

Modular enclosure, PrismaSeT XS, surface, 3 x 13 modules, 1 earth + 1 neutral + 1 phase terminal blocks, without door - LVSXT313
SKU : LVSXT313
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Modular enclosure, PrismaSeT XS, surface, 3 x 13 modules, 1 earth + 1 neutral + 1 phase terminal blocks, without door - LVSXT313
DESCRIPTION
| Range: | PrismaSeT |
|---|---|
| Product name: | XS |
| Product or component type: | Enclosure |
| Enclosure type: | Distribution enclosure |
| Enclosure mounting: | Surface |
| Width: | Total: 336 mm |
|---|---|
| Height: | Total: 600 mm |
| Depth: | Total |
| Internal depth: | 115 mm |
| Number of 18 mm modules per row: | 13 |
| Number of horizontal rows: | 3 |
| Total number of 18 mm modules: | 39 |
| 9 mm pitches: | 78 |
| Electrical insulation class: | Class II |
| Provided equipment: | 3 identification label3 label protector3 terminal block1 blanking plate strip1 door to be ordered separately3 DIN rail1 back plate |
| Type of front plate: | Modular |
| Type of rail: | Symmetrical DIN |
| Mounting plate description: | Without mounting plate |
| Power dissipation in W: | 45 W |
| [In] rated current: | 90 A |
| [Ui] rated insulation voltage: | 400 V |
| Cable entry: | Cable or tubeCut-out platesTrunkingRemovable plates |
| Number of terminal blocks: | 1 earth with 24 outgoers1 neutral with 7 outgoers1 phase with 7 outgoers |
| Distribution block outgoers: | 3 x 25 mm² + 21 x 4 mm² for earth1 x 35 mm² + 6 x 16 mm² for neutral1 x 35 mm² + 6 x 16 mm² for phase |
| Connections - terminals: | Screw connection (earth) , 3 x 6...25 mm²Push-in (earth) , 21 x 1.5...4 mm² (flexible) Push-in (earth) , 21 x 6 mm² (rigid or stranded) Screw connection (neutral) , 1 x 35 mm²Screw connection (neutral) , 6 x 16 mm²Screw connection (phase) , 1 x 35 mm²Screw connection (phase) , 6 x 16 mm² |
| Enclosure material: | Back part: technoplasticEnclosure: technoplasticFront plate: technoplastic |
| Net weight: | 3.900 kg |
| Colour: | Enclosure: white (RAL 9003)Front plate: white (RAL 9003) |
| Market segment: | ResidentialSmall buildings |
| Fire resistance: | Back plate: 750 °C conforming to IEC 60695-2-11Enclosure: 750 °C conforming to IEC 60695-2-11Front plate: 750 °C conforming to IEC 60695-2-11 |
|---|---|
| IP degree of protection: | IP30 without doorIP40 with door |
| IK degree of protection: | IK08 without doorIK09 with door |
| Overvoltage category: | II |
| Ambient air temperature for operation: | -25...60 °C |
| Standards: | IEC 60670-1IEC 60670-24IEC 61439-1IEC 61439-3 |
| Quality labels: | IMQ |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606482041325 |
|---|
