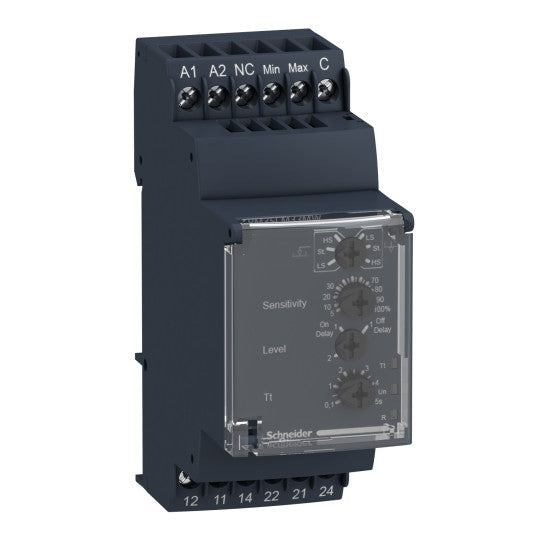

Modular liquid level control relay, 5 A, 2 CO, 24...240 V AC/DC - RM35LM33MW
SKU : RM35LM33MW
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Modular liquid level control relay, 5 A, 2 CO, 24...240 V AC/DC - RM35LM33MW
DESCRIPTION
| Range of product: | Harmony Control Relays |
|---|---|
| Product or component type: | Level control relay |
| Relay type: | Level control relay |
| Relay name: | RM35L |
| Relay monitored parameters: | Detection by resistive probes |
| Time delay type: | Adjustable 0.1...5 s, +/- 10 % |
| Switching capacity in VA: | 1250 VA |
| Minimum switching current: | 10 mA at 5 V DC |
| Maximum switching current: | 5 A AC/DC |
| Maximum power consumption in VA: | 5 VA AC |
| Measurement range: | 250 Ohm...1 MOhm |
| Utilisation category: | AC-12 conforming to IEC 60947-5-1AC-13 conforming to IEC 60947-5-1AC-14 conforming to IEC 60947-5-1AC-15 conforming to IEC 60947-5-1DC-12 conforming to IEC 60947-5-1DC-13 conforming to IEC 60947-5-1 |
| Contacts type and composition: | 2 C/O |
| Connections - terminals: | Screw connectors |
| [Uc] control circuit voltage: | 24...240 V |
| [In] rated current: | 5 A |
| Reset time: | 1750 ms |
|---|---|
| Maximum switching voltage: | 250 V AC/DC |
| [Us] rated supply voltage: | 24...240 V AC/DC 50/60 Hz +/- 10 % |
| Supply voltage limits: | 20.4...264 V AC/DC |
| Control circuit voltage limits: | - 15 % + 10 % Un |
| Maximum power consumption in W: | 1.5 W DC |
| Output contacts: | 2 C/O |
| Nominal output current: | 5 A |
| Run-up delay at power-up: | 0.6 s |
| Measurement accuracy: | +/- 10 % of the full scale value+/- 20 % for the HS range |
| Repeat accuracy: | +/- 2 % for time delay |
| Measurement error: | 0.5 %/°C with temperature variation |
| Maximum cable distance between devices: | 100 m |
| Sensitivity scale: | 0.25...5 kOhm LS (Low Sensitivity)5...100 kOhm St (Standard Sensitivity)50...1000 kOhm HS (High Sensitivity) |
| Sensitivity adjustment: | 5...100 % |
| Maximum supply current for sensors: | 1 mA |
| Cable capacitance: | 1 nF at HS (High Sensitivity) for probe cable2.2 nF at St (Standard Sensitivity) for probe cable4.7 nF at LS (Low Sensitivity) |
| Marking: | CE |
| Overvoltage category: | III conforming to IEC 60664-1 |
| Insulation resistance: | > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5> 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1> 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5> 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1> 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5> 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1 |
| [Ui] rated insulation voltage: | 250 V conforming to IEC 60664-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 60255-54 kV conforming to IEC 60664-14 kV conforming to IEC 61000-4-5 |
| Operating position: | Any position without derating |
| Connections - terminals: | Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable endScrew terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable endScrew terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable endScrew terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end |
| Tightening torque: | 0.6...1 N.m conforming to IEC 60947-1 |
| Housing material: | Self-extinguishing plastic |
| Local signalling: | LED (yellow) for relay ONLED (green) for power ONLED (yellow) for timer ON |
| Mounting support: | 35 mm symmetrical DIN rail conforming to EN/IEC 60715 |
| Electrical durability: | 100000 cycles |
| Mechanical durability: | 30000000 cycles |
| Operating rate: | |
| Safety reliability data: | B10d = 170000MTTFd = 182.6 years |
| Width: | 35 mm |
| Functionality: | Resistive probe detection |
| Compatibility code: | RM3 |
| Immunity to microbreaks: | 100 ms DC90 ms AC |
|---|---|
| Electromagnetic compatibility: | Emission standard for industrial environments conforming to EN/IEC 61000-6-4Emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 |
| Standards: | EN/IEC 60255-6 |
| Product certifications: | CSAGLULC-TickGOST |
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -20...50 °C |
| Relative humidity: | 95 % at 55 °C conforming to IEC 60068-2-30 |
| Vibration resistance: | 0.35 mm (f= 5...57.6 Hz) conforming to IEC 60068-2-61 gn (f= 57.6...150 Hz) conforming to IEC 60255-21-1 |
| Shock resistance: | 15 gn for 11 ms conforming to IEC 60255-21-1 |
| IP degree of protection: | IP20 (terminals) conforming to IEC 60529IP30 (casing) conforming to IEC 60529 |
| Pollution degree: | 3 conforming to IEC 60664-1 |
| Dielectric test voltage: | 2 kV, 1 min AC 50 Hz conforming to IEC 60255-52 kV, 1 min AC 50 Hz conforming to IEC 60664-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119405232 |
|---|
