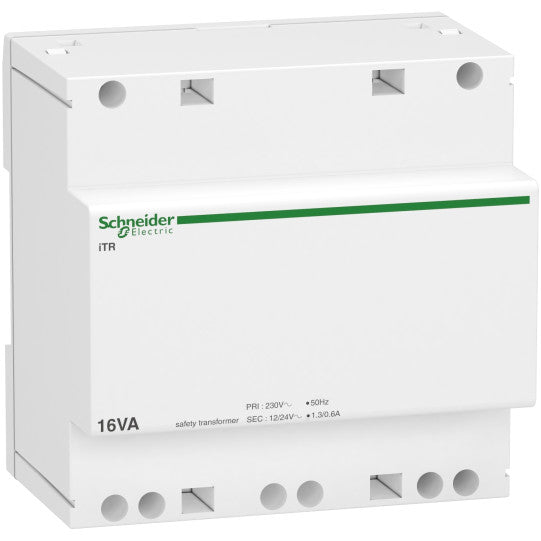

modular safety transfomer iTR - 230 V 50..60 Hz - output 12..24 V - 16 VA - A9A15218
DESCRIPTION
| Transformer type: | Safety transformer |
|---|---|
| Range: | Acti 9 |
| Range of product: | Acti 9 |
| Product name: | Acti 9 iTR |
| Product or component type: | Transformer |
| Device short name: | ITR |
| [Ue] rated operational voltage: | 230 V AC 50/60 Hz |
|---|---|
| Output voltage: | 12/24 V: +/-5 % on load14/28 V: off load |
| Output short-circuit protection: | Built-in |
| Rated power in VA: | 16 VA |
| Rated operational power in VA: | 16 VA 35 °C15.2 VA 40 °C12.8 VA 50 °C9.6 VA 55 °C7.2 VA 60 °C |
| Mounting mode: | Fixed |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 10 |
| Height: | 89 mm |
| Width: | 90 mm |
| Depth: | 60 mm |
| Colour: | White |
| Auxiliary connection terminal: | Tunnel type terminals 4 mm² |
| Market segment: | ResidentialSmall commercial |
| Compatibility code: | ITR |
| Standards: | EN 61558-2-6EN 60742IEC 61558-2-6 |
|---|---|
| Product certifications: | NF |
| Overvoltage category: | Class II with terminal shields in option |
| Ambient air temperature for operation: | -20...55 °C |
| Ambient air temperature for storage: | -25...80 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3606480097805 |
|---|
