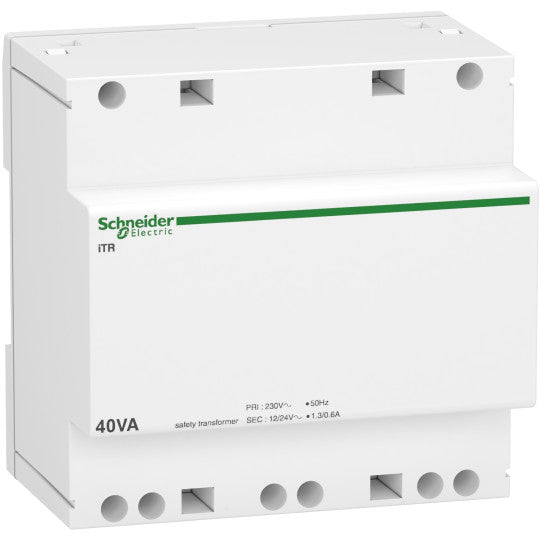

modular safety transfomer iTR - 230 V 50..60 Hz - output 12..24 V - 40 VA - A9A15220
SKU : A9A15220
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
modular safety transfomer iTR - 230 V 50..60 Hz - output 12..24 V - 40 VA - A9A15220
DESCRIPTION
| Transformer type: | Safety transformer |
|---|---|
| Range: | Acti 9 |
| Range of product: | Acti 9 |
| Product name: | Acti 9 iTR |
| Product or component type: | Transformer |
| Device short name: | ITR |
| [Ue] rated operational voltage: | 230 V AC 50/60 Hz |
|---|---|
| Output voltage: | 12/24 V: +/-5 % on load14/28 V: off load |
| Output short-circuit protection: | Built-in |
| Rated power in VA: | 40 VA |
| Rated operational power in VA: | 40 VA 35 °C38 VA 40 °C32 VA 50 °C24 VA 55 °C18 VA 60 °C |
| Mounting mode: | Fixed |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 10 |
| Height: | 89 mm |
| Width: | 90 mm |
| Depth: | 60 mm |
| Colour: | White |
| Auxiliary connection terminal: | Tunnel type terminals 4 mm² |
| Market segment: | Small commercialResidential |
| Compatibility code: | ITR |
| Standards: | EN 60742EN 61558-2-6IEC 61558-2-6 |
|---|---|
| Product certifications: | NF |
| Overvoltage category: | Class II with terminal shields in option |
| Ambient air temperature for operation: | -20...55 °C |
| Ambient air temperature for storage: | -25...80 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3606480097829 |
|---|
