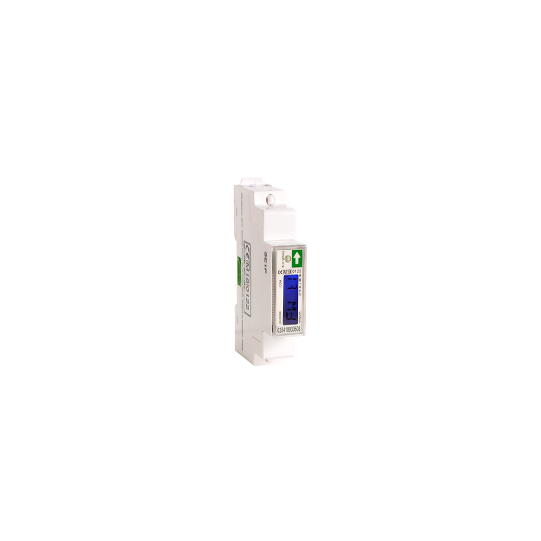

modular single phase power meter iEM2055 - 230V - 45A with comm Modbus - MID - A9MEM2055
SKU : A9MEM2055
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
modular single phase power meter iEM2055 - 230V - 45A with comm Modbus - MID - A9MEM2055
DESCRIPTION
| Range: | Acti9 |
|---|---|
| Product name: | Acti9 iEM2000 |
| Device short name: | iEM2055 |
| Product or component type: | Energy meter |
| Market segment: | Buildings small building cost management: billing: panelboardBuildings medium building cost management: billing: panelboardBuildings large building cost management: billing: panelboardBuildings multi-site cost management: billing: panelboardData center cost management: billing: panelboardHealthcare cost management: billing: panelboardIndustry cost management: billing: panelboardBuildings small building cost management: cost allocation: panelboardBuildings medium building cost management: cost allocation: panelboardBuildings large building cost management: cost allocation: panelboardBuildings multi-site cost management: cost allocation: panelboardData center cost management: cost allocation: panelboardHealthcare cost management: cost allocation: panelboardIndustry cost management: cost allocation: panelboard |
| Poles description: | 1P + N |
|---|---|
| Type of measurement: | Active and reactive energyActive and reactive powerPower factorCurrentVoltageFrequencyApparent power |
| Metering type: | Active, reactive, apparent energy (signed, four quadrant) |
| Device application: | Sub billingMulti-tariff |
| Accuracy class: | Class 1 active energy conforming to IEC 62053-21Class B active energy conforming to EN 50470-3Class 2 reactive energy conforming to IEC 62053-23 |
| Analogue input type: | Direct input |
| Max current: | 45 A |
| [Ib] basic current: | 5 A |
| [In] rated current: | 45 A |
| Rated voltage: | 230 V - 15...10 % |
| Network frequency: | 50 Hz |
| Frequency measurement range: | 45...55 Hz |
| Technology type: | Electronic |
| Display type: | LCD display |
| Sampling rate: | 32 samples/cycle |
| Measurement current: | 0.25...45 A |
| Display digits: | 6 |
| Maximum value measured: | 9999.99 kWh99999.9 kWh |
| Information displayed: | Tariff (2) |
| Communication port protocol: | Modbus RTU at 1200...9600 bit/s even/odd or none |
| Communication port support: | Screw terminals: RS485 |
| Local signalling: | Red LED: metering and activity 0.01, 0.1, 1, 10, 100, 1000, 2000 or 10000 p/kWh |
| Number of inputs: | 0 |
| Number of outputs: | 1 pulse energy monitoring: |
| Impulse duration: | 11.2...32 ms |
| [Us] rated supply voltage: | 195...253 V AC 50 Hz |
| Maximum power consumption in VA: | 10 VA at 240 V AC |
| Maximum power consumption in W: | 2 W |
| [Uimp] rated impulse withstand voltage: | 6 kV 1.2/50 µs |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Connections - terminals: | Power circuit: tunnel type terminals (bottom) 1 8...10 mm² cable(s) Power circuit: tunnel type terminals (top) 1 8...10 mm² cable(s) Pulse output: screw clamp terminals (top) 1 2.5 mm² cable(s) Communication: screw clamp terminals (bottom) 1 2.5 mm² cable(s) |
| Tightening torque: | Power circuit: 0.35 N.m flat screwdriver 2.2 mmPulse output: 0.1 N.m flat screwdriver 1.3 mmCommunication: 0.1 N.m flat screwdriver 1.3 mm |
| Wire stripping length: | Power circuit: 7.5 mmPulse output: 7 mmCommunication: 7 mm |
| Standards: | IEC 62053-21IEC 62053-23EN 50470-3 |
| Product certifications: | MID conforming to EN 50470-3CE conforming to EN 50470-3CE |
| Compatibility code: | IEM2055 |
| IP degree of protection: | IP51 front panel: conforming to IEC 60529IP20 casing: |
|---|---|
| Ambient air temperature for operation: | -25...55 °C |
| Ambient air temperature for storage: | -30...70 °C |
| Operating altitude: | |
| Relative humidity: | 0...75 % at 55 °C |
| Colour: | White |
| 9 mm pitches: | 2 |
| Width: | 17.5 mm |
| Height: | 90 mm |
| Depth: | 63 mm |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606489566548 |
|---|
