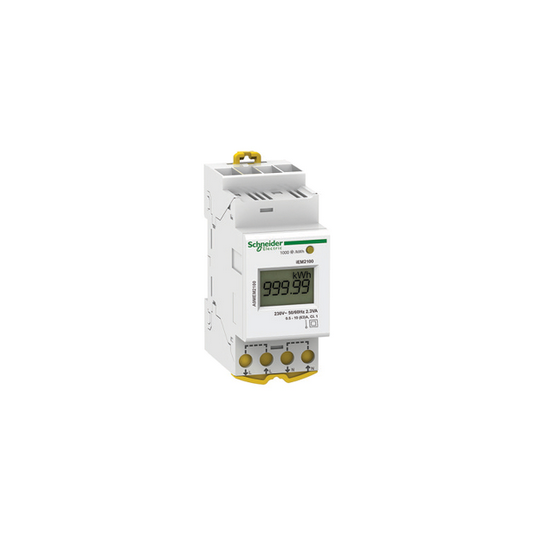

modular single phase power meter iEM2100 - 230V - 63A - A9MEM2100
SKU : A9MEM2100
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
modular single phase power meter iEM2100 - 230V - 63A - A9MEM2100
DESCRIPTION
| Range: | Acti 9 |
|---|---|
| Product name: | Acti 9 iEM2100 |
| Device short name: | IEM2100 |
| Product or component type: | Energy meter |
| Market segment: | Buildings small building cost management: billing: panelboardBuildings medium building cost management: billing: panelboardBuildings large building cost management: billing: panelboardBuildings multi-site cost management: billing: panelboardData center cost management: billing: panelboardHealthcare cost management: billing: panelboardIndustry cost management: billing: panelboardBuildings small building cost management: cost allocation: panelboardBuildings medium building cost management: cost allocation: panelboardBuildings large building cost management: cost allocation: panelboardBuildings multi-site cost management: cost allocation: panelboardData center cost management: cost allocation: panelboardHealthcare cost management: cost allocation: panelboardIndustry cost management: cost allocation: panelboard |
| Poles description: | 1P + N |
|---|---|
| Type of measurement: | Active energy |
| Device application: | Sub billing |
| Accuracy class: | Class 1 active energy conforming to IEC 62053-21 |
| Analogue input type: | Direct input |
| [In] rated current: | 63 A |
| Rated voltage: | 230 V +/- 20 % |
| Network frequency: | 60 Hz50 Hz |
| Frequency measurement range: | 45...65 Hz |
| Technology type: | Electronic |
| Display type: | LCD display |
| Sampling rate: | 32 samples/cycle |
| Measurement current: | 0...63 A |
| Display digits: | 5 |
| Maximum value measured: | 999.99 MWh |
| Information displayed: | Tariff (1) |
| Communication port protocol: | - |
| Communication port support: | - |
| Local signalling: | Green indicator light: power ONYellow indicator light: metering and activity 1000 p/kWh |
| Number of inputs: | 0 |
| Number of outputs: | 0 |
| Maximum power consumption in VA: | 2.5 VA |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Connections - terminals: | Power circuit: tunnel type terminals (bottom) 1 16 mm² cable(s) |
| Tightening torque: | Power circuit: 1.5 N.m |
| Standards: | IEC 61557-12IEC 62053-21 |
| Product certifications: | CE |
| Compatibility code: | IEM2100 |
| IP degree of protection: | IP50 conforming to IEC 60529 |
|---|---|
| IK degree of protection: | IK05 |
| Ambient air temperature for operation: | -20...70 °C-20...55 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Relative humidity: | 0...95 % at 55 °C |
| Colour: | White |
| 9 mm pitches: | 4 |
| Width: | 36 mm |
| Height: | 81 mm |
| Depth: | 65 mm |
| Product weight: | 0.135 kg |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3606480835223 |
|---|---|
| Substitution_texte: | Product not available. Here is the equivalent reference that we offer : A9MEM2455 - Modular single phase power meter iEM2455 - 230V - 100A with communication Modbus |
