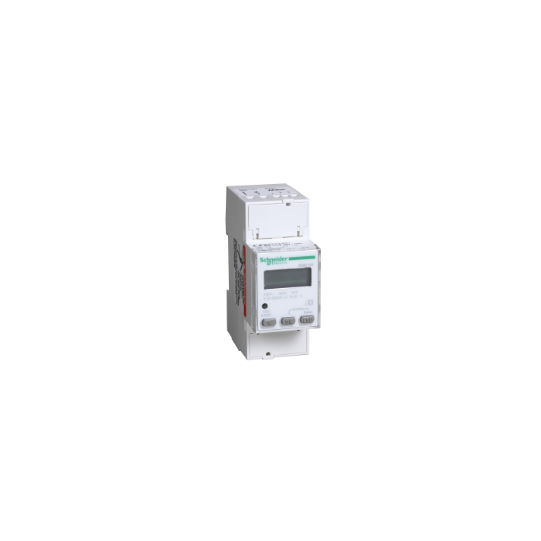

modular single phase power meter iEM2135 - 230V - 63A with comm M-Bus - MID - A9MEM2135
SKU : A9MEM2135
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
modular single phase power meter iEM2135 - 230V - 63A with comm M-Bus - MID - A9MEM2135
DESCRIPTION
| Range: | Acti9 |
|---|---|
| Product name: | Acti9 iEM2100 |
| Device short name: | iEM2135 |
| Product or component type: | Energy meter |
| Market segment: | Buildings small building cost management: billing: panelboardBuildings medium building cost management: billing: panelboardBuildings large building cost management: billing: panelboardBuildings multi-site cost management: billing: panelboardData center cost management: billing: panelboardHealthcare cost management: billing: panelboardIndustry cost management: billing: panelboardBuildings small building cost management: cost allocation: panelboardBuildings medium building cost management: cost allocation: panelboardBuildings large building cost management: cost allocation: panelboardBuildings multi-site cost management: cost allocation: panelboardData center cost management: cost allocation: panelboardHealthcare cost management: cost allocation: panelboardIndustry cost management: cost allocation: panelboard |
| Poles description: | 1P + N |
|---|---|
| Type of measurement: | Active and reactive energyActive and reactive powerCurrentVoltagePower factorFrequency |
| Metering type: | Active, reactive, apparent energy (signed, four quadrant) |
| Device application: | Sub billingPartial meterMulti-tariff |
| Accuracy class: | Class 1 active energy conforming to IEC 62053-21Class B active energy conforming to EN 50470-3Class 2 reactive energy conforming to IEC 62053-23 |
| Analogue input type: | Direct input |
| Max current: | 63 A |
| [Ib] basic current: | 5 A |
| [In] rated current: | 63 A |
| Rated voltage: | 230 V +/- 20 % |
| Network frequency: | 50 Hz60 Hz |
| Frequency measurement range: | 45...65 Hz |
| Technology type: | Electronic |
| Display type: | LCD display |
| Sampling rate: | 32 samples/cycle |
| Measurement current: | 0.25...63 A |
| Display digits: | 8 |
| Maximum value measured: | 999999.99 kWh |
| Information displayed: | Tariff (2) |
| Communication port protocol: | M-bus at 300, 600, 1200, 2400, 4800 and 9600 bauds - 2 wires, insulation 3750 V |
| Communication port support: | Screw terminals: M-Bus |
| Local signalling: | Red LED: accuracy checking 1...1000 p/kWh |
| Number of inputs: | 1 digital |
| [Us] rated supply voltage: | 96...276 V AC 50 Hz |
| Maximum power consumption in VA: | 3 VA at 240 V AC |
| Maximum power consumption in W: | 1 W |
| [Uimp] rated impulse withstand voltage: | 6 kV 1.2/50 µs |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Connections - terminals: | Power circuit: tunnel type terminals (bottom) 1 1.65...33 mm² cable(s) solidPower circuit: tunnel type terminals (bottom) 1 1.65...33 mm² cable(s) stranded with cable endCommunication: screw clamp terminals (top) 1 1...4 mm² cable(s) solidCommunication: screw clamp terminals (top) 1 1...2.5 mm² cable(s) stranded with cable end |
| Tightening torque: | Power circuit: 2 N.m PZ2 screwdriver Communication: 0.5 N.m3.5 mm |
| Wire stripping length: | Power circuit: 17 mmCommunication: 7 mm |
| Standards: | IEC 62053-23IEC 62052-31IEC 62052-11IEC 62053-21 |
| Product certifications: | MID conforming to EN 50470-1MID conforming to EN 50470-3CE |
| Compatibility code: | IEM2135 |
| IP degree of protection: | IP40 front panel: conforming to IEC 60529IP20 casing: |
|---|---|
| Overvoltage category: | III |
| Pollution degree: | 2 |
| Flame retardance: | V0 conforming to UL 94 |
| Ambient air temperature for operation: | -25...55 °C |
| Ambient air temperature for storage: | -25...70 °C |
| Operating altitude: | |
| Relative humidity: | 0...95 % at 55 °C |
| Colour: | White |
| 9 mm pitches: | 4 |
| Width: | 36 mm |
| Height: | 90 mm |
| Depth: | 70 mm |
| Net weight: | 0.175 kg |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606485434643 |
|---|
