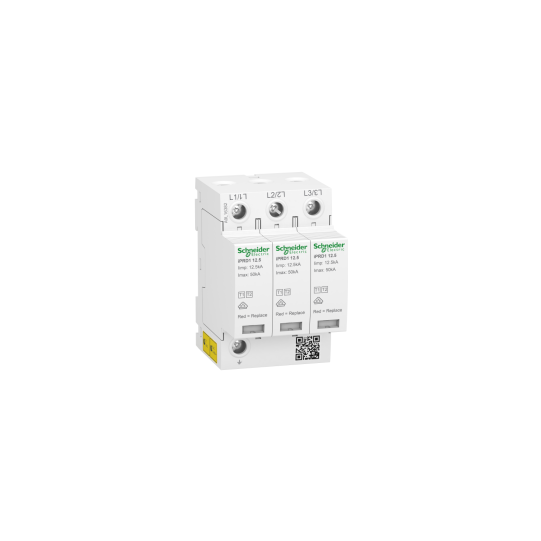

Modular surge arrester, Acti9 iPRD1 12.5, 3 P, 350 V, with remote transfert - A9L16382
SKU : A9L16382
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Modular surge arrester, Acti9 iPRD1 12.5, 3 P, 350 V, with remote transfert - A9L16382
DESCRIPTION
| Range: | Acti9 |
|---|---|
| Product name: | Acti9 iPRD1 |
| Product or component type: | Surge arrester |
| Device short name: | IPRD1 12.5 |
| Device application: | Distribution |
| Poles description: | 3P |
| Remote signalling: | With |
| Signal contacts composition: | 1 SD (1 C/O) |
| Surge arrester type: | Electrical distribution network |
| Earthing system: | TN-C |
| Surge arrester class type: | Type 1 + 2 |
|---|---|
| Surge arrester technology: | MOV + GDT |
| [Ue] rated operational voltage: | 230/400 V AC (+/- 10 %) at 50...60 Hz |
| Nominal discharge current: | 20 kA |
| Maximum discharge current: | 50 kA |
| [Iimp] impulse current: | Common mode: 12.5 kA L/PE |
| [Uc] maximum continuous operating voltage: | Common mode: 350 V L/PE |
| Maximum [Up] voltage protection level: | |
| Residual current: | 0.9 mA L/PE |
| [Ut] temporary overvoltage: | 442 V L/PE 120 min withstand1455 V L/PE 200 ms safe failure mode |
| Disconnector device type: | Associated fuse gG 160 A 120 kA standardAssociated circuit breaker Compact NSX160E 80 A 25 kA standard |
| Short-circuit withstand: | 50 kA |
| Local signalling: | White mechanical indicator for operatingRed mechanical indicator for end of life |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 6 |
| Height: | 89 mm |
| Width: | 54 mm |
| Depth: | 69 mm |
| Product weight: | 486 g |
| Colour: | White (RAL 9003) |
| Material: | PA6 |
| Response time: | |
| Connections - terminals: | Tunnel type terminal (phase) 10...25 mm² flexibleTunnel type terminal (phase) 10...35 mm² rigidTunnel type terminal (earth) 16...25 mm² flexibleTunnel type terminal (earth) 16...35 mm² rigid |
| Wire stripping length: | 14 mm |
| Tightening torque: | 3.5 N.m |
| Impulse current: | 12.5 kA |
| Market segment: | Small commercialResidential |
| Standards: | EN 61643-11:2012IEC 61643-11:2011 |
|---|---|
| Quality labels: | CEEACVDE |
| IP degree of protection: | IP40 on front face: conforming to IEC 60529IP20 built-in: conforming to IEC 60529 |
| IK degree of protection: | IK05 conforming to IEC 62262 |
| Pollution degree: | 3 |
| Relative humidity: | 5...95 % |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481490216 |
|---|
