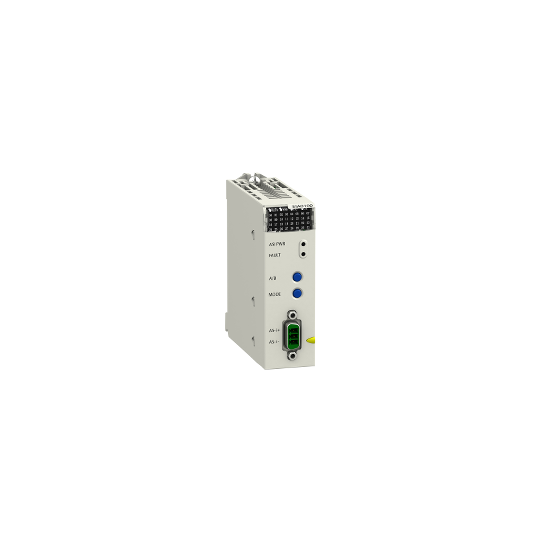

Module Maître AS-i V3 - BMXEIA0100

Name: Module Maître AS-i V3 - BMXEIA0100
Brand: Schneider Electric
SKU: BMXEIA0100
Availability: InStock

SKU : BMXEIA0100

Regular price €0,00

Contact us for price and lead time for this product. Our team will respond quickly.

We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.

Lead time: 2–3 weeks – Ships quickly after order confirmation

Module Maître AS-i V3 - BMXEIA0100

DESCRIPTION

DESCRIPTION

Range of product:	Modicon M340 automation platform
Product or component type:	Master module
AS-Interface profile:	M4 (master profile)S7.3 (slave profile)S7.A.7 (slave profile)S7.A.A (slave profile)S7.A.8 (slave profile)S7.A.9 (slave profile)S6.0 (slave profile)
Addressing:	Standard and extended

Cycle time:	5 ms for 3110 ms for 62
Electrical connection:	1 male connector SUB-D 3 pins
Number of slave:	124 slave(s) for discrete inputs and outputs - standard124 slave(s) for analog inputs and outputs - standard496 slave(s) for discrete inputs and outputs - extended124 slave(s) for analog inputs and outputs - extended
Cable length:
Local signalling:	1 LED for fault1 LED green for module active (RUN)1 LED red for module error (ERR)1 LED green for displays the group of 31 slaves (A/B)1 LED red for I/O module fault (I/O)32 LEDs for diagnostics of the AS-Interface and each slave1 LED green for external power supply present1 LED red for line fault1 LED for ASI power
Current consumption:	160 mA at 3.3 V DC
Module format:	Standard
Product weight:	0.34 kg

Product certifications:	AS-Interface No 86601
Ambient air temperature for operation:	0...60 °C
Ambient air temperature for storage:	-40...70 °C
IP degree of protection:	IP20
Warranty period:	18 months

Code EAN:

3595864038032

Contexte:

The X80 family incorporates the compatible modules common for Quantum Ethernet I/O drops and M340 PLC, all with a M340 form factor.
Included are: backplane, all in-rack modules, power supply, Ethernet RIO module drop head, all I/O modules, communication modules (except Ethernet), and expert modules.
Not included are: M340 CPU and Ethernet modules BMXNO (as they can be used in M340 PLC only).

Based on the latest I/O technology

Innovative I/O
Robust
Compact
High quality
International certifications (including marine, ATEX, nuclear)
Hot swap
Wide selection of modules: digital I/Os, analog I/Os, expert, communication
Long term offer (new)

High level services

Through Unity Pro
With structured data (Device DDT), simplifying diagnostics
Using bit forcing to simplify simulation

New functionalities

Modbus serial link in your X80 drops with QEIO
Sequence Of Event Time Stamped at source in a solution mode without program

Compatibility

All M340 existing modules are supported by X80 drop of QEIO (except AS-I, NOR, SSI)
One X80 drop can support two racks along 30m, just like the M340 PLC (up to 4 racks for M340)
Maximum number of supported X80 drops: 16 for 140CPU6x1xx and 31 for 140CPU6x2xx
