module network TM4 4 Ethernet switchs - TM4ES4
SKU : TM4ES4
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation

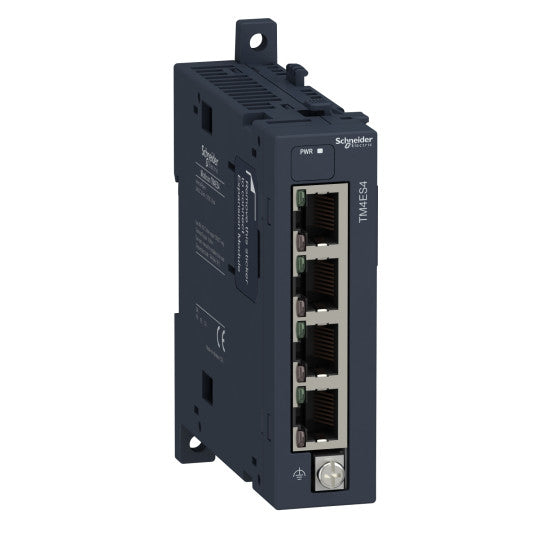

module network TM4 4 Ethernet switchs - TM4ES4
DESCRIPTION
| Product or component type: | Ethernet unmanaged switch |
|---|
| Range compatibility: | Modicon M251Modicon M241 |
|---|---|
| Product compatibility: | Modicon M241 logic controllerModicon M251 logic controller |
| Current consumption: | 360 mA at 5 V DC for communication bus |
| Integrated connection type: | Ethernet: 4 RJ45 connector |
| Transmission rate: | 10/100 Mbit/s |
| Port Ethernet: | 10BASE-T/100BASE-TX - 4 port(s) copper cable |
| Web services: | Web server |
| Communication service: | Modbus TCP serverModbus TCP slave deviceFTPNGVLMonitoringIEC VAR ACCESSProgrammingSNMPModbus TCP clientDownloadingUpdating firmwareEthernet/IP slave deviceDHCP client |
| Maximum number of connections: | 8 Modbus server16 Ethernet/IP device |
| Communication port protocol: | Ethernet IP/Modbus TCPTCP (Transmission Control Protocol)UDP (User Datagram Protocol)SNMP |
| Redundancy: | No |
| Local signalling: | 1 LED (green) for PWR1 LED per channel (green/yellow) for Ethernet link1 LED per channel (green) for Ethernet port activity |
| Electrical connection: | RJ45 4 connectors for connecting Ethernet networkScrew connector terminal for connecting the functional ground |
| Marking: | CE |
| Surge withstand: | 1 kV power lines (DC) common mode conforming to EN/IEC 61000-4-52 kV power lines (AC) common mode conforming to EN/IEC 61000-4-52 kV relay output common mode conforming to EN/IEC 61000-4-51 kV I/O common mode conforming to EN/IEC 61000-4-51 kV shielded cable common mode conforming to EN/IEC 61000-4-50.5 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-51 kV power lines (AC) differential mode conforming to EN/IEC 61000-4-51 kV relay output differential mode conforming to EN/IEC 61000-4-50.5 kV I/O differential mode conforming to EN/IEC 61000-4-5 |
| Mounting support: | Top hat type TH35-15 rail conforming to IEC 60715Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Width: | 25 mm |
| Height: | 90 mm |
| Depth: | 90 mm |
| Product weight: | 0.125 kg |
| Standards: | UL 508EN/IEC 61131-2 |
|---|---|
| Product certifications: | cULusC-Tick |
| Resistance to electrostatic discharge: | 8 kV in air conforming to EN/IEC 61000-4-24 kV on contact conforming to EN/IEC 61000-4-28 kV in air conforming to Marine specification (LR, ABS, DNV, GL)6 kV on contact conforming to Marine specification (LR, ABS, DNV, GL) |
| Resistance to electromagnetic fields: | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-33 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-31 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3 |
| Resistance to fast transients: | 2 kV (power lines) conforming to EN/IEC 61000-4-42 kV (relay output) conforming to EN/IEC 61000-4-41.5 kV (I/O) conforming to EN/IEC 61000-4-41 kV (Ethernet line) conforming to EN/IEC 61000-4-41 kV (serial link) conforming to EN/IEC 61000-4-4 |
| Resistance to conducted disturbances: | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-63 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL)10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission: | Conducted emissions - test level: 79 dB?V/m QP/66 dB?V/m AV ( power lines (AC)) at 0.15...0.5 MHz conforming to EN/IEC 55011Conducted emissions - test level: 73 dB?V/m QP/60 dB?V/m AV ( power lines (AC)) at 0.5...300 MHz conforming to EN/IEC 55011Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10...150 kHz conforming to EN/IEC 55011Conducted emissions - test level: 63 dB?V/m QP ( power lines) at 1.5...30 MHz conforming to EN/IEC 55011Radiated emissions - test level: 40 dB?V/m QP class A at 30...230 MHz conforming to EN/IEC 55011Radiated emissions - test level: 60...54 dB?V/m QP at 30...100 MHz conforming to Marine specification (LR, ABS, DNV, GL)Radiated emissions - test level: 24 dB?V/m QP at 156...165 MHz conforming to Marine specification (LR, ABS, DNV, GL)Conducted emissions - test level: 79...63 dB?V/m QP ( power lines) at 150...1500 kHz conforming to EN/IEC 55011Radiated emissions - test level: 47 dB?V/m QP class A at 230...1000 MHz conforming to EN/IEC 55011Radiated emissions - test level: 80...50 d?V/m QP at 150...30000 kHz conforming to Marine specification (LR, ABS, DNV, GL)Radiated emissions - test level: 54 dB?V/m QP at 100...2000 MHz conforming to Marine specification (LR, ABS, DNV, GL) |
| Ambient air temperature for operation: | -10...55 °C horizontal installation-10...50 °C vertical installation |
| Ambient air temperature for storage: | -25...70 °C |
| Relative humidity: | 10...95 %, without condensation (in operation)10...95 %, without condensation (in storage) |
| IP degree of protection: | IP20 with protective cover in place |
| Pollution degree: | 2 |
| Operating altitude: | 0...2000 m |
| Storage altitude: | 0...3000 m |
| Vibration resistance: | 1 mm at 5...13.2 Hz on symmetrical rail3 gn at 8.7...150 Hz on symmetrical rail1 mm at 5...13.2 Hz on panel mounting0.7 gn at 13.2...100 Hz on panel mounting |
| Shock resistance: | 15 gn for 11 ms |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480611216 |
|---|
