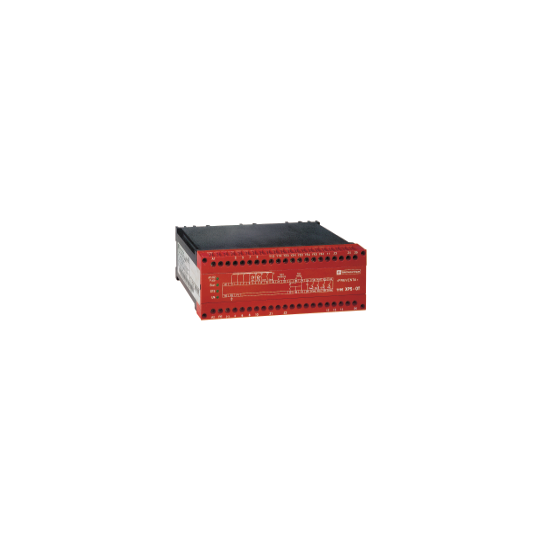

module XPSOT - stop at top dead center with automatic overtravel - 230 V AC - XPSOT3744
SKU : XPSOT3744
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
module XPSOT - stop at top dead center with automatic overtravel - 230 V AC - XPSOT3744
DESCRIPTION
| Range of product: | Preventa Safety automation |
|---|---|
| Product or component type: | Preventa safety module |
| Safety module name: | XPSOT |
| Safety module application: | Safety stop with automatic overtravel monitoring and control |
| Function of module: | Safety stop with automatic overtravel monitoring and control |
| Safety level: | Can reach PL e/category 4 conforming to EN/ISO 13849-1Can reach SILCL 3 conforming to EN/IEC 62061 |
| Safety reliability data: | MTTFd = 60.9 years conforming to EN/ISO 13849-1DC = 0...99 % conforming to EN/ISO 13849-1PFHd = 1.33E-8 1/h conforming to EN/IEC 62061 |
| [Us] rated supply voltage: | 230 V AC - 15...10 % |
| Output type: | Relay, 3 NO circuit(s), volt-free |
| Number of additional circuits: | 4 solid state outputs |
| Enclosure type: | Removable |
| Supply frequency: | 50/60 Hz |
|---|---|
| Power consumption in VA: | 12 VA |
| Input protection type: | Internal, electronic |
| Breaking capacity: | 180 VA holding AC-15 C300 relay output1800 VA inrush AC-15 C300 relay output |
| Breaking capacity: | 10 mA at 48 V for solid state output circuit20 mA at 24 V for solid state output circuit1.5 A at 24 V (DC-13) time constant: 50 ms for relay output |
| [Ith] conventional free air thermal current: | 2.5 A |
| Associated fuse rating: | 4 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Minimum output current: | 10 mA for relay output |
| Minimum output voltage: | 17 V for relay output |
| Maximum response time on input open: | 20 ms |
| [Ui] rated insulation voltage: | 300 V (pollution degree 2) conforming to IEC 60647-5-1, DIN VDE 0110 part 1 |
| [Uimp] rated impulse withstand voltage: | 4 kV overvoltage category III conforming to IEC 60647-5-1, DIN VDE 0110 part 1 |
| Local signalling: | 4 LEDs |
| Enclosure material: | Polycarbonate |
| Number of terminal blocks: | 42 |
| Connections - terminals: | Captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² with cable endCaptive screw clamp terminals, 2 x 2.5 mm² without cable end |
| Mounting support: | 35 mm symmetrical DIN rail |
| Depth: | 118 mm |
| Height: | 73 mm |
| Width: | 200 mm |
| Product weight: | 1.1 kg |
| Standards: | EN/IEC 60947-5-1EN 692EN 60204-1 |
|---|---|
| Product certifications: | CSAULTÜV |
| IP degree of protection: | IP10 (terminals) conforming to EN/IEC 60529IP40 (enclosure) conforming to EN/IEC 60529 |
| Ambient air temperature for operation: | -10...55 °C |
| Ambient air temperature for storage: | -25...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110724769 |
|---|
