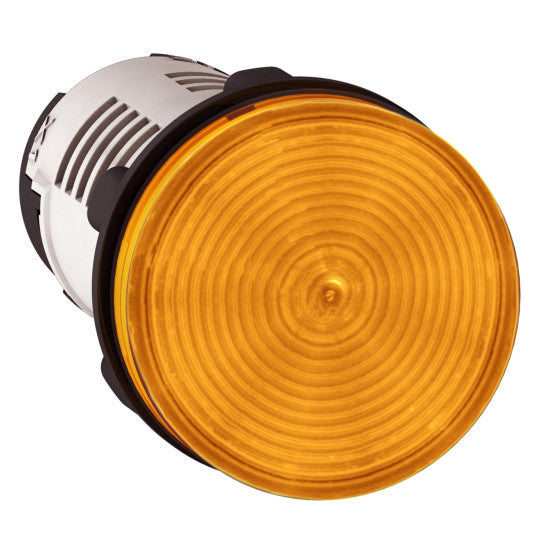

Monolithic pilot light, plastic, orange, Ø22, integral LED, 230…240 V AC - XB7EV08MP
SKU : XB7EV08MP
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Monolithic pilot light, plastic, orange, Ø22, integral LED, 230…240 V AC - XB7EV08MP
DESCRIPTION
| Range of product: | Harmony XB7 |
|---|---|
| Product or component type: | Pilot light |
| Device short name: | XB7 |
| Mounting diameter: | 22 mm |
| Shape of signaling unit head: | Round |
| Cap/operator or lens colour: | Orange |
| Light source: | LED |
| Bulb base: | Integral LED |
| [Us] rated supply voltage: | 230...240 V AC 50/60 Hz |
| Device presentation: | Monolithic product |
| Height: | 29 mm |
|---|---|
| Width: | 29 mm |
| Depth: | 54 mm |
| Terminals description ISO n°1: | (X1-X2)PL |
| Product weight: | 0.02 kg |
| Device mounting: | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1 |
| Fixing center: | >= 30 x 40 mm (support panel) metal - thickness: 1...6 mm>= 30 x 40 mm (support panel) plastic - thickness: 2...6 mm |
| Fixing mode: | Fixing nut beneath head: 2...2.4 N.m |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Tightening torque: | 0.8...1.2 N.m conforming to EN 60947-1 |
| Shape of screw head: | Cross compatible with JIS No 1 screwdriverCross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] rated insulation voltage: | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-1 |
| Signalling type: | Steady |
| Supply voltage limits: | 195...264 V AC |
| Current consumption: | 16...20 mA |
| Service life: | 70000 h at rated voltage and 25 °C |
| Compatibility code: | XB7 |
| [Us] rated supply voltage: | 230...240 V |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP20 (rear face) conforming to IEC 60529IP65 (front face) conforming to IEC 60529 |
| NEMA degree of protection: | NEMA 4 conforming to UL 50 ENEMA 12 conforming to UL 50 E |
| Standards: | EN/IEC 60947-5-1EN/IEC 60947-1UL 508JIS C8201-5-1CSA C22.2 No 14JIS C8201-1 |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Electromagnetic compatibility: | Disturbing field emission class B conforming to EN 55011 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119021920 |
|---|
