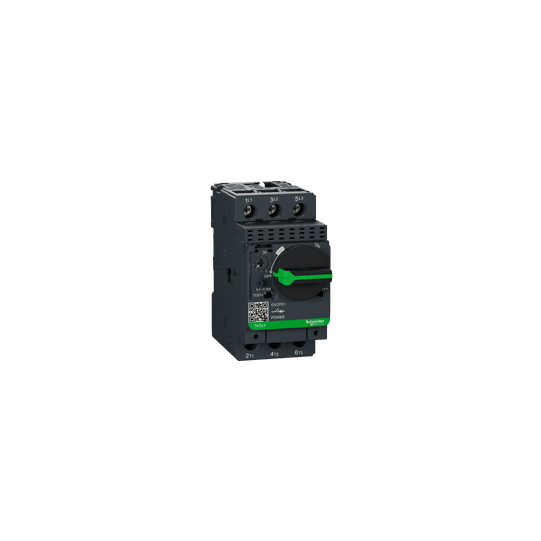

Motor circuit breaker, TeSys GV2, 3P, 0.1-0.16 A, thermal magnetic, screw clamp terminals - GV2P01
SKU : GV2P01
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Motor circuit breaker, TeSys GV2, 3P, 0.1-0.16 A, thermal magnetic, screw clamp terminals - GV2P01
DESCRIPTION
| Range: | TeSysTeSys Deca |
|---|---|
| Range of product: | TeSys GV2 |
| Product name: | TeSys GV2TeSys Deca |
| Product or component type: | Circuit breaker |
| Device short name: | GV2P |
| Device application: | Motor |
| Trip unit technology: | Thermal-magnetic |
| Poles description: | 3P |
|---|---|
| Network type: | AC |
| Utilisation category: | AC-3 conforming to IEC 60947-4-1Category A conforming to IEC 60947-2 |
| Network frequency: | 50/60 Hz conforming to IEC 60947-4-1 |
| Fixing mode: | 35 mm symmetrical DIN rail: clippedPanel: screwed (with 2 x M4 screws) |
| Operating position: | Any position |
| Breaking capacity: | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity: | 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type: | Rotary knob |
| [In] rated current: | 0.16 A |
| Trip unit rating: | 0.1...0.16 A |
| Magnetic tripping current: | 1.5 A |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage: | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ith] conventional free air thermal current: | 0.16 A conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-2 |
| Power dissipation per pole: | 2.5 W |
| Mechanical durability: | 100000 cycles |
| Electrical durability: | 100000 cycles for AC-3 at 440 V |
| Maximum operating rate: | 25 cyc/h |
| Rated duty: | Continuous conforming to IEC 60947-4-1 |
| Direct connector: | Without |
| Tightening torque: | 1.7 N.m on screw clamp terminals |
| Suitability for isolation: | Yes conforming to IEC 60947-1 |
| Phase failure sensitivity: | Yes conforming to IEC 60947-4-1 |
| Height: | 89 mm |
| Width: | 45 mm |
| Depth: | 97 mm |
| Colour: | Dark grey |
| Compatibility code: | GV2P |
| Standards: | EN/IEC 60947-2EN/IEC 60947-4-1UL 60947-4-1CSA C22.2 No 60947-4-1 |
|---|---|
| Product certifications: | IECEE CB SchemeULCSACCCEACATEXBVLROS (Lloyds register of shipping)DNV-GLRINAUKCA |
| Protective treatment: | TH |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| IK degree of protection: | IK04 |
| Ambient air temperature for operation: | -20...60 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Fire resistance: | 960 °C conforming to IEC 60695-2-1 |
| Operating altitude: | 2000 m |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110213409 |
|---|
