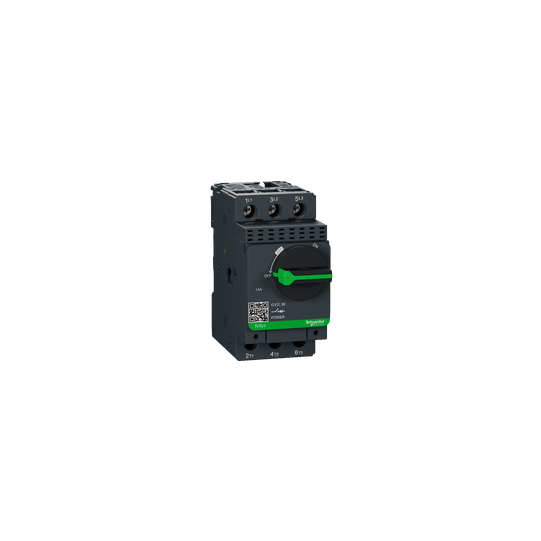

Motor circuit breaker, TeSys GV2, 3P, 14 A, magnetic, rotary handle, screw clamp terminals - GV2L16
SKU : GV2L16
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Motor circuit breaker, TeSys GV2, 3P, 14 A, magnetic, rotary handle, screw clamp terminals - GV2L16
DESCRIPTION
| Range: | TeSysTeSys Deca |
|---|---|
| Range of product: | TeSys GV2TeSys Deca |
| Product name: | TeSys GV2TeSys Deca |
| Product or component type: | Circuit breaker |
| Device short name: | GV2L |
| Device application: | Motor |
| Poles description: | 3P |
| Network type: | AC |
| Utilisation category: | Category A conforming to IEC 60947-2AC-3 conforming to IEC 60947-4-1 |
| Network frequency: | 50/60 Hz conforming to IEC 60947-2 |
| Breaking capacity: | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-24 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-210 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-220 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-250 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity: | 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-275 % at 440 V AC 50/60 Hz conforming to IEC 60947-275 % at 500 V AC 50/60 Hz conforming to IEC 60947-250 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Trip unit technology: | Magnetic |
| Magnetic tripping current: | 170 A |
| Fixing mode: | 35 mm symmetrical DIN rail: clippedPanel: screwed (with 2 x M4 screws) |
|---|---|
| Operating position: | Any position |
| Motor power kW: | 5.5 kW at 400/415 V AC 50/60 Hz7.5 kW at 500 V AC 50/60 Hz9 kW at 690 V AC 50/60 Hz11 kW at 690 V AC 50/60 Hz |
| Control type: | Rotary knob |
| [In] rated current: | 14 A |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage: | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-2 |
| Power dissipation per pole: | 1.8 W |
| Mechanical durability: | 100000 cycles |
| Electrical durability: | 100000 cycles for AC-3 at 415 V |
| Maximum operating rate: | 40 cyc/h |
| Rated duty: | Continuous conforming to IEC 60947-4-1 |
| Direct connector: | Without |
| Connections - terminals: | Screw clamp terminals 2 cable(s) 1...6 mm² solidScrew clamp terminals 2 cable(s) 1.5...6 mm² flexible without cable endScrew clamp terminals 2 cable(s) 1...4 mm² flexible with cable end |
| Tightening torque: | 1.7 N.m on screw clamp terminals |
| Mechanical robustness: | Shocks: 30 Gn conforming to IEC 60068-2-27Vibrations: 5 Gn, 5...150 Hz conforming to IEC 60068-2-6 |
| Suitability for isolation: | Yes conforming to IEC 60947-1 |
| Height: | 89 mm |
| Width: | 45 mm |
| Depth: | 97 mm |
| Product weight: | 0.33 kg |
| Compatibility code: | GV2L |
| Standards: | EN/IEC 60947-2EN/IEC 60947-4-1CSA C22.2 No 60947-4-1UL 60947-4-1 |
|---|---|
| Product certifications: | IECEE CB SchemeULCSACCCEACRINALROS (Lloyds register of shipping)DNV-GLBVUKCA |
| Protective treatment: | TH |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| IK degree of protection: | IK04 |
| Ambient air temperature for operation: | -20...60 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Fire resistance: | 960 °C conforming to IEC 60695-2-1 |
| Operating altitude: | 0...2000 m |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110213287 |
|---|
