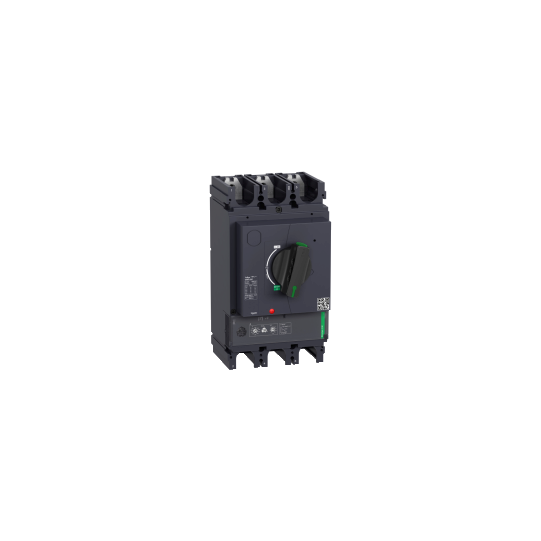

Motor circuit breaker, TeSys GV6, 3P, 320A, Icu 36kA, thermal magnetic - GV6P320F
SKU : GV6P320F
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Motor circuit breaker, TeSys GV6, 3P, 320A, Icu 36kA, thermal magnetic - GV6P320F
DESCRIPTION
| Range: | TeSys |
|---|---|
| Range of product: | TeSys GV6 |
| Device short name: | GV6P |
| Product name: | TeSys GV6TeSys Giga |
| Product or component type: | Motor circuit breaker |
| Device application: | Motor protection |
| Trip unit technology: | Electronic |
| Poles description: | 3P |
|---|---|
| Utilisation category: | Category A conforming to IEC 60947-2 |
| Motor power kW: | 132...160 kW at 400/415 V AC 50/60 Hz160...200 kW at 500 V AC 50/60 Hz200...250 kW at 660/690 V AC 50/60 Hz |
| Breaking capacity: | 36 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-225 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-210 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity: | 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2100 % at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type: | Direct rotary handle |
| [In] rated current: | 320 A at 65 °C |
| Magnetic tripping current: | 4800 A |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz |
| [Ui] rated insulation voltage: | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ith] conventional free air thermal current: | 320 A conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| Power dissipation per pole: | 19.2 W |
| Mechanical durability: | 15000 cycles |
| Electrical durability: | 6000 cycles for AC-3 at 400/415 V In |
| Maximum operating rate: | 25 cyc/h |
| Rated duty: | Continuous |
| Connection pitch: | 45 mm without spreaders |
| Direct connector: | Without |
| Connections - terminals: | BarsLugs |
| Tightening torque: | 50 N.m M10 screw type |
| Mechanical robustness: | Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6 |
| Phase failure sensitivity: | Yes conforming to IEC 60947-4-1 |
| Height: | 255 mm |
| Width: | 140 mm |
| Depth: | 179 mm |
| Net weight: | 6.5 kg |
| Colour: | Anthracite (RAL 7016) |
| Suitability for isolation: | Yes conforming to EN/IEC 60947-2 |
| Standards: | EN/IEC 60947-1EN/IEC 60947-2EN/IEC 60947-4-1UL 60947-4-1CSA C22.2 No 60947-4-1 |
|---|---|
| Product certifications: | IECEE CB SchemeEAC (pending) |
| Climatic withstand: | conforming to IACS E10 |
| IK degree of protection: | IK07 conforming to IEC 62262 |
| IP degree of protection: | IP40 conforming to IEC 60529 |
| Ambient air temperature for storage: | -50...85 °C |
| Fire resistance: | 960 °C conforming to IEC 60695-2-11 |
| Operating altitude: | 5000 m |
| Ambient air temperature for operation: | -25...70 °C |
| EU RoHS Directive: | CompliantMercury free |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606489915445 |
|---|
