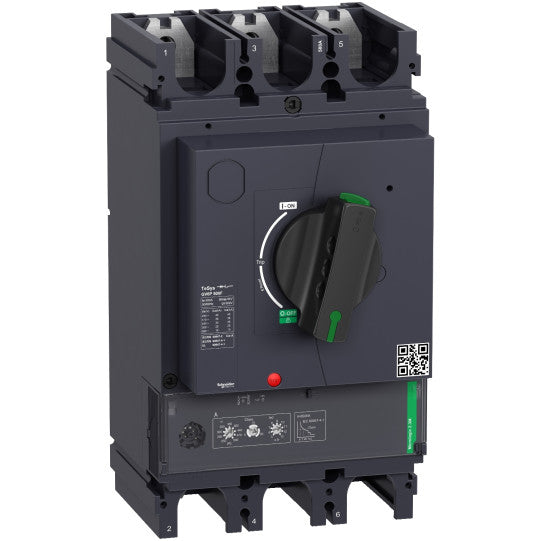

Motor circuit breaker, TeSys GV6, 3P, 500A, Icu 36kA, thermal magnetic - GV6P500F
SKU : GV6P500F
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Motor circuit breaker, TeSys GV6, 3P, 500A, Icu 36kA, thermal magnetic - GV6P500F
DESCRIPTION
| Range: | TeSys |
|---|---|
| Range of product: | TeSys GV6 |
| Product name: | TeSys GV6 |
| Product or component type: | Motor circuit breaker |
| Device short name: | GV6P |
| Device application: | Motor protection |
| Protection type: | Overload protectionShort-circuit protectionInstantaneous short-circuit protectionPhase unbalancePhase loss |
| Utilisation category: | Category A conforming to IEC 60947-2 |
| Control type: | Direct rotary handle |
| Suitability for isolation: | Yes conforming to EN/IEC 60947-2 |
| Poles description: | 3P |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz |
| [In] rated current: | 500 A at 65 °C |
| Breaking capacity code: | F 36 kA |
| Breaking capacity: | 36 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-225 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-210 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity: | 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2100 % at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage: | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| Overvoltage category: | III |
| Trip unit name: | Micrologic 2.3 M |
| Trip unit rating: | 500 A |
| Trip unit technology: | Electronic |
| Magnetic tripping current: | 6500 A |
| [Isd] short-time pick-up adjustment range: | 5...13 x Ir adjustable 9 settings |
| Thermal protection adjustment range: | 250...500 A adjustable 9 settings |
| Thermal overload class: | Class 5 conforming to IEC 60947-4-1Class 10 conforming to IEC 60947-4-1Class 20 conforming to IEC 60947-4-1 |
| Phase failure sensitivity: | Yes conforming to IEC 60947-4-1 |
| Mechanical durability: | 15000 cycles |
| Electrical durability: | 4000 cycles for AC-3 at 400/415 V In |
| Maximum operating rate: | 25 cyc/h |
| Rated duty: | Continuous |
| Power dissipation per pole: | 39.7 W |
| Motor power kW: | 200...250 kW at 400/415 V AC 50/60 Hz250...315 kW at 500 V AC 50/60 Hz315...400 kW at 660/690 V AC 50/60 Hz |
|---|---|
| Local signalling: | LED readyLED 95 % Ith |
| Standards: | EN/IEC 60947-1EN/IEC 60947-2EN/IEC 60947-4-1UL 60947-4-1CSA C22.2 No 60947-4-1 |
| Product certifications: | IECEE CB SchemeEAC (pending) |
| Fixing mode: | By screws |
| Mounting position: | Horizontal and vertical |
| Connections - terminals: | Power circuit: bars - busbar cross section: 32 x 10 mmPower circuit: lugs - external diameter: 32 mm |
| Connection pitch: | 45 mm without spreaders |
| Tightening torque: | 50 N.m screw |
| Width: | 140 mm |
| Height: | 255 mm |
| Depth: | 179 mm |
| Product weight: | 6.7 kg |
| Colour: | Anthracite (RAL 7016) |
| Ambient air temperature for storage: | -55...85 °C |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Operating altitude: | 0...2000 m without derating |
| IP degree of protection: | IP40 conforming to IEC 60529 |
| IK degree of protection: | IK07 conforming to IEC 62262 |
| Pollution degree: | 3 |
| Protective treatment: | TC |
| Fire resistance: | 960 °C conforming to IEC 60695-2-1 |
| Mechanical robustness: | Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6 |
| EU RoHS Directive: | CompliantMercury free |
| Code EAN: | 3606489915469 |
|---|
