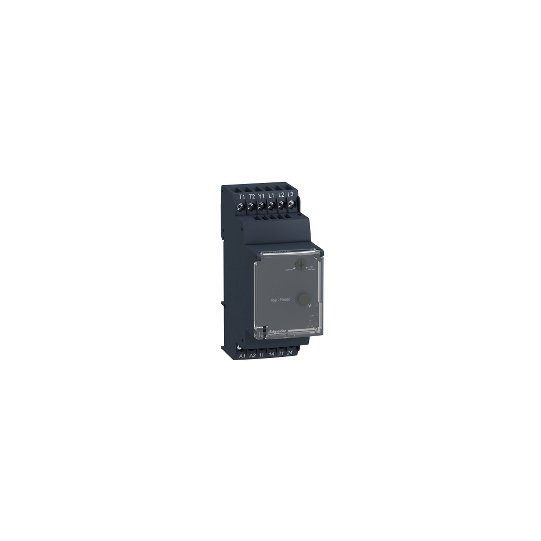

motor voltage and temperature control relay - RM35-T - 24..240 V AC/DC - 2 NO - RM35TM250MW
SKU : RM35TM250MW
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
motor voltage and temperature control relay - RM35-T - 24..240 V AC/DC - 2 NO - RM35TM250MW
DESCRIPTION
| Range of product: | Harmony Control Relays |
|---|---|
| Product or component type: | 3-phase control relay |
| Relay type: | Motor temperature control relay |
| Product specific application: | For 3-phase supply |
| Relay name: | RM35TM |
| Relay monitored parameters: | Phase failure detectionPhase sequenceTest/reset buttonMotor temperature via PTC probeSelection (with or without memory) |
| Time delay type: | Fixed 0.3 s |
| Switching capacity in VA: | 1250 VA |
| Measurement range: | 208...480 V voltage AC0...20 Ohm short-circuit detection |
| Contacts type and composition: | 2 NO |
| Connections - terminals: | Screw connectors |
| [Uc] control circuit voltage: | 24...240 V |
| [In] rated current: | 5 A |
| Reset time: | 10000 ms output |
|---|---|
| Maximum switching voltage: | 250 V AC250 V DC |
| Minimum switching current: | 10 mA at 5 V DC |
| Maximum switching current: | 5 A AC5 A DC |
| Supply voltage limits: | 20.4...264 V AC20.4...264 V DC |
| Power consumption in VA: | 0...4 VA at 24...240 V AC |
| Maximum power consumption in W: | 0.5 W DC |
| Control circuit frequency: | 50...60 Hz +/- 10 % |
| Resistance across terminals: | 602 mOhm |
| Output contacts: | 2 NO |
| Nominal output current: | 5 A |
| Measurement voltage limits: | 176...528 V AC |
| Run-up delay at power-up: | 500 ms |
| Voltage range: | 176...528 V |
| Response time: | > 50 ms (input Y1 (contact Y1-T1) and push-button) |
| [Uc] control circuit voltage: | |
| Short-circuit current: | 0.007 A temperature sensing circuit (T1-T2 terminals short circuited) |
| Maximum resistance: | 1500 Ohm for temperature sensor at 20 °C |
| Tripping threshold: | 3100 Ohm +/- 10 % for temperature control circuit |
| Reset threshold: | 1650 Ohm +/- 10 % for temperature control circuit |
| Marking: | CE |
| Overvoltage category: | III conforming to IEC 60664-1 |
| Insulation resistance: | > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5> 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1> 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5> 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1> 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5> 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1 |
| [Ui] rated insulation voltage: | 400 V conforming to IEC 60664-1 |
| Supply frequency: | 50/60 Hz +/- 10 % |
| Operating position: | Any position without derating |
| Connections - terminals: | Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable endScrew terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable endScrew terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable endScrew terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Tightening torque: | 0.6...1 N.m conforming to IEC 60947-1 |
| Housing material: | Self-extinguishing plastic |
| Local signalling: | LED (green) for power ONLED (yellow) for phase of relay (R2)LED (yellow) for temperature of relay (R1) |
| Mounting support: | 35 mm symmetrical DIN rail conforming to EN/IEC 60715 |
| Electrical durability: | 10000 cycles |
| Mechanical durability: | 30000000 cycles |
| Operating rate: | |
| Utilisation category: | AC-12 conforming to IEC 60947-5-1AC-13 conforming to IEC 60947-5-1AC-14 conforming to IEC 60947-5-1AC-15 conforming to IEC 60947-5-1DC-12 conforming to IEC 60947-5-1DC-13 conforming to IEC 60947-5-1 |
| Width: | 35 mm |
| Net weight: | 0.13 kg |
| Compatibility code: | RM3 |
| Immunity to microbreaks: | 20 ms at 20.4 V |
|---|---|
| Electromagnetic compatibility: | Emission standard for industrial environments conforming to EN/IEC 61000-6-4Emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3Immunity for industrial environments conforming to EN/IEC 61000-6-2 |
| Standards: | EN/IEC 60255-6IEC 60034-11-2 |
| Product certifications: | CSAC-TickGOSTULGL |
| Directives: | 73/23/EEC - low voltage directive89/336/EEC - electromagnetic compatibility |
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -20...50 °C |
| Relative humidity: | 95 % at 55 °C conforming to IEC 60068-2-30 |
| Vibration resistance: | 0.35 mm (f= 5...57.6 Hz) conforming to IEC 60068-2-61 gn (f= 57.6...150 Hz) conforming to IEC 60255-21-1 |
| Shock resistance: | 15 gn for 11 ms conforming to IEC 60255-21-1 |
| IP degree of protection: | IP20 (terminals) conforming to IEC 60529IP30 (casing) conforming to IEC 60529 |
| Pollution degree: | 3 conforming to IEC 60664-1 |
| Dielectric test voltage: | 2 kV, 1 min AC 50 Hz |
| Non-dissipating shock wave: | 4 kV |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389119405270 |
|---|
