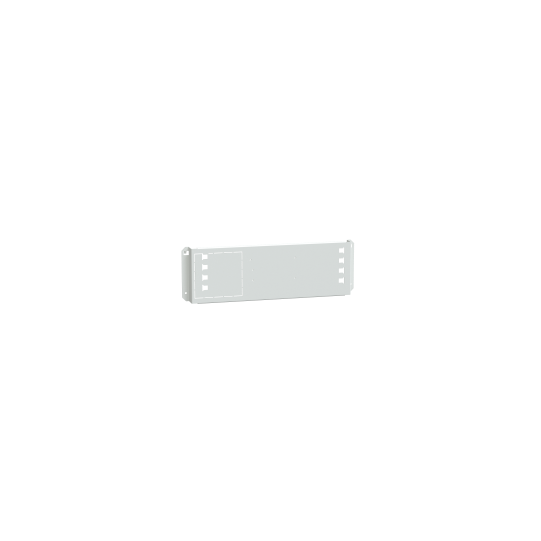

MOUNTING PLATE NSXm/VIGI/SDx HZ ROT.HANDLE W600 - LVS03021
SKU : LVS03021
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
MOUNTING PLATE NSXm/VIGI/SDx HZ ROT.HANDLE W600 - LVS03021
DESCRIPTION
| Range: | PrismaSeT |
|---|---|
| Range of product: | PrismaSeT G |
| Product or component type: | Mounting plate |
| Accessory / separate part category: | Installation accessory |
| Range compatibility: | PrismaSeT G enclosure |
| Enclosure/cubicle description: | Floor-standing enclosure - width 600 mmWall-mounted enclosure - width 600 mmFloor-standing enclosure - width 850 mmFloor-standing enclosure + duct - width 600 + 300 mmWall-mounted enclosure + duct - width 600 + 300 mm |
| Mounting plate description: | Dedicated |
| Installed device: | ComPact: fixed NSXm without earth leakage protection - control: direct rotary handle - horizontal installation |
| Poles description: | 1 x 3P or 4P: fixed NSXm horizontal installation |
| Number of vertical modules [50 mm]: | 3 module(s): NSXm without earth leakage protection , direct in 600 mm Widefloor-standing enclosure3 module(s): NSXm without earth leakage protection , direct in 600 mm Widewall-mounted enclosure3 module(s): NSXm without earth leakage protection , direct in 600 + 300 mm Widefloor-standing enclosure + duct3 module(s): NSXm without earth leakage protection , direct in 600 + 300 mm Widewall-mounted enclosure + duct3 module(s): NSXm without earth leakage protection , direct in 850 mm Widefloor-standing enclosure |
| Standards: | IEC 61439-2 |
| Product certifications: | ASTA |
| Material: | Sheet steel |
|---|---|
| Protective treatment: | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish: | MattTextured |
| Colour: | White (RAL 9003) |
| Width: | 470 mm |
| Height: | 150 mm |
| Enclosure/cubicle width: | 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm850 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSXm without fixed direct rotary handle horizontal 3P or 4P 1 direct 3 25 mm |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Environmental Disclosure: | ENVPEP2103022_V1 |
| PVC free: | Yes |
| Halogen content performance: | Halogen free plastic parts product |
| Code EAN: | 3606481871473 |
|---|
