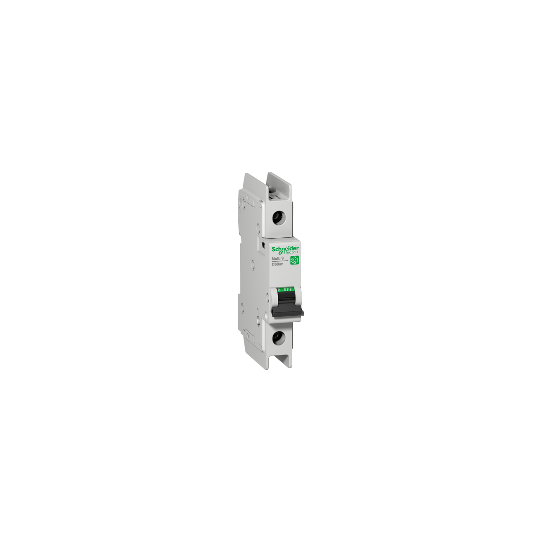

Multi 9 - C60BP - MCB - 1P - 3 A - D Curve - 277 V - 10 kA - UL 489 - M9F43103
SKU : M9F43103
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Multi 9 - C60BP - MCB - 1P - 3 A - D Curve - 277 V - 10 kA - UL 489 - M9F43103
DESCRIPTION
| Range of product: | Multi9 |
|---|---|
| Range: | Multi9 |
| Product name: | Multi9 C60 |
| Product or component type: | Miniature circuit-breaker |
| Device short name: | C60BP |
| Device application: | Distribution |
| Poles description: | 1P |
| Number of protected poles: | 1 |
| [In] rated current: | 3 A at 25 °C conforming to EN/IEC 60947-2 |
| Network type: | DCAC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | D |
| Breaking capacity: | 3 kA Icu at 415 V AC conforming to EN/IEC 60947-210 kA Icu at 240 V AC conforming to EN/IEC 60947-220 kA Icu at 60 V DC conforming to EN/IEC 60947-23 kA Icu at 415 V AC conforming to GB 14048.210 kA Icu at 240 V AC conforming to GB 14048.220 kA Icu at 60 V DC conforming to GB 14048.210 kA AIR at 277 V AC conforming to UL 48914 kA AIR at 240 V AC conforming to UL 48914 kA AIR at 120 V AC conforming to UL 48910 kA AIR at 60 V DC conforming to UL 48910 kA AIR at 277 V AC conforming to CSA C22.2 No 514 kA AIR at 240 V AC conforming to CSA C22.2 No 514 kA AIR at 120 V AC conforming to CSA C22.2 No 510 kA AIR at 60 V DC conforming to CSA C22.2 No 5 |
| Suitability for isolation: | Yes conforming to EN/IEC 60947-2 |
| Standards: | EN/IEC 60947-2GB 14048.2UL 489CSA C22.2 No 5 |
| Product certifications: | IECCCCCSAUL |
| [Ue] rated operational voltage: | 240 V AC 50/60 Hz415 V AC 50/60 Hz60 V DC |
|---|---|
| Magnetic tripping limit: | 12 x In +/- 20 % AC17 x In +/- 20 % DC |
| [Ics] rated service breaking capacity: | 2.25 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC7.5 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC2.25 kA 75 % conforming to GB 14048.2 - 415 V AC7.5 kA 75 % conforming to GB 14048.2 - 240 V AC15 kA 75 % conforming to GB 14048.2 - 60 V DC15 kA 75 % conforming to EN/IEC 60947-2 - 60 V DC |
| [Ui] rated insulation voltage: | 500 V AC conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-2 |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Connection pitch: | 18 mm between devices |
| 9 mm pitches: | 2 |
| Height: | 103 mm |
| Width: | 18 mm |
| Depth: | 72 mm |
| Colour: | Grey |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 10000 cycles |
| Provision for padlocking: | Padlockable |
| Connections - terminals: | Tunnel type terminal (top or bottom)1...25 mm² (AWG 18...AWG 8) - rigidTunnel type terminal (top or bottom)1...16 mm² (AWG 18...AWG 8) - flexible with ferruleTunnel type terminal (top or bottom)1...16 mm² (AWG 18...AWG 8) - flexible |
| Wire stripping length: | 14 mm for top or bottom connection |
| Tightening torque: | 2.5 N.m top or bottom |
| Earth-leakage protection: | Without |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
|---|---|
| Pollution degree: | 3 conforming to EN/IEC 60947-2 |
| Tropicalisation: | 2 conforming to IEC 60068-1 |
| Relative humidity: | 95 % at 55 °C |
| Operating altitude: | 0...2000 m |
| Ambient air temperature for operation: | -30...70 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606481170170 |
|---|
