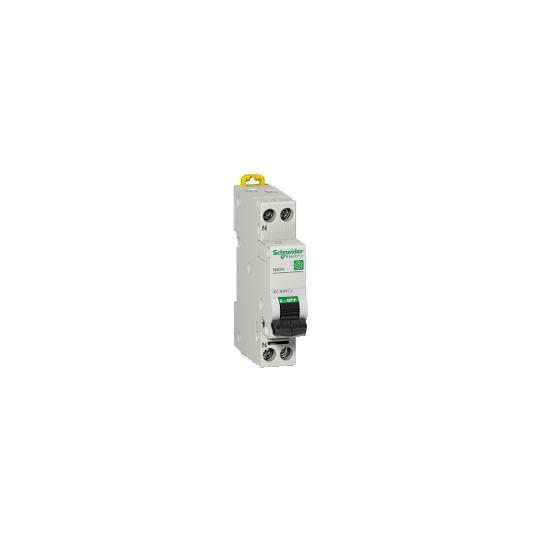

Multi 9 - N40N - MCB - 1P + N - 2 A - C Curve - 240 V - 10 kA - M9P22602
SKU : M9P22602
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Multi 9 - N40N - MCB - 1P + N - 2 A - C Curve - 240 V - 10 kA - M9P22602
DESCRIPTION
| Range of product: | Multi 9 |
|---|---|
| Range: | Multi 9 |
| Product name: | Multi 9 N40 |
| Product or component type: | Miniature circuit-breaker |
| Device short name: | N40N |
| Device application: | Distribution |
| Poles description: | 1P + N |
| Number of protected poles: | 1 |
| Neutral position: | Left |
| [In] rated current: | 2 A at 50 °C conforming to EN/IEC 60947-2 |
| Network type: | AC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| Breaking capacity code: | N |
| Breaking capacity: | 10 kA Icu at 240 V AC 50/60 Hz between phase and neutral conforming to EN/IEC 60947-2 |
| Suitability for isolation: | Yes conforming to EN/IEC 60947-2 |
| Standards: | EN/IEC 60947-2 |
| Network frequency: | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage: | 240 V AC 50/60 Hz between phase and neutral |
| Magnetic tripping limit: | 8.5 x In +/- 20 % AC |
| [Ics] rated service breaking capacity: | 7.5 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC 50/60 Hz |
| Limitation class: | 3 conforming to EN/IEC 60947-2 |
| [Ui] rated insulation voltage: | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to EN/IEC 60947-2 |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 2 |
| Height: | 81 mm |
| Width: | 18 mm |
| Depth: | 78 mm |
| Product weight: | 0.115 kg |
| Colour: | Grey |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 20000 cycles |
| Provision for padlocking: | Padlockable |
| Connections - terminals: | Tunnel type terminal (top or bottom)0.75...16 mm² - rigidTunnel type terminal (top or bottom)0.33...10 mm² - flexibleTunnel type terminal (top or bottom)0.33...10 mm² - flexible with ferrule |
| Wire stripping length: | 13 mm for top or bottom connection |
| Tightening torque: | 2 N.m top or bottom |
| Earth-leakage protection: | Separate block |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
|---|---|
| Pollution degree: | 3 conforming to EN/IEC 60947-2 |
| Tropicalisation: | 2 conforming to IEC 60068-1 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480572227 |
|---|
