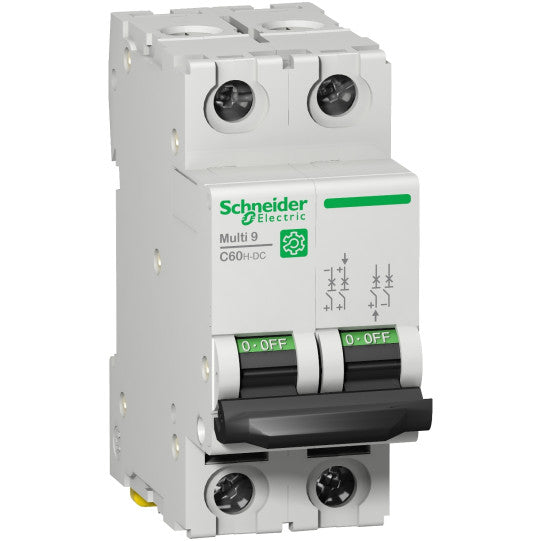

Multi9 - C60H-DC - MCB - 2P - 10 A - C Curve - 500 V DC - 10 kA - M9U21210
SKU : M9U21210
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Multi9 - C60H-DC - MCB - 2P - 10 A - C Curve - 500 V DC - 10 kA - M9U21210
DESCRIPTION
| Range of product: | Multi 9 |
|---|---|
| Range: | Multi 9 |
| Product name: | Multi 9 C60H-DC |
| Product or component type: | Miniature circuit-breaker |
| Device short name: | C60H-DC |
| Device application: | Distribution |
| Poles description: | 2P |
| Number of protected poles: | 2 |
| [In] rated current: | 10 A at 25 °C conforming to EN/IEC 60947-2 |
| Network type: | DC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| Breaking capacity code: | H |
| Breaking capacity: | 20 kA Icu at 220 V DC conforming to EN/IEC 60947-210 kA Icu at 440 V DC conforming to EN/IEC 60947-26 kA Icu at 500 V DC conforming to EN/IEC 60947-25 kA AIR at 12...500 V DC conforming to UL 107720 kA Icu at 220 V DC conforming to GB 14048.210 kA Icu at 440 V DC conforming to GB 14048.26 kA Icu at 500 V DC conforming to GB 14048.2 |
| Utilisation category: | Category A conforming to EN/IEC 60947-2 |
| Suitability for isolation: | Yes conforming to EN/IEC 60947-2 |
| Standards: | EN/IEC 60947-2GB 14048.2UL 1077 |
| Product certifications: | IECCCCUR |
| [Ue] rated operational voltage: | 220 V DC440 V DC500 V DC |
|---|---|
| Magnetic tripping limit: | 7...10 x In DC |
| [Ics] rated service breaking capacity: | 7.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V DC4.5 kA 75 % conforming to EN/IEC 60947-2 - 500 V DC15 kA 75 % conforming to EN/IEC 60947-2 - 220 V DC7.5 kA 75 % conforming to GB 14048.2 - 440 V DC4.5 kA 75 % conforming to GB 14048.2 - 500 V DC15 kA 75 % conforming to GB 14048.2 - 220 V DC |
| [Ui] rated insulation voltage: | 500 V DC conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-2 |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 4 |
| Height: | 81 mm |
| Width: | 36 mm |
| Depth: | 73 mm |
| Product weight: | 0.128 kg |
| Colour: | Grey |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 3000 cycles 250 V DC L/R = 2 ms6000 cycles 250 V DC |
| Provision for padlocking: | Padlockable |
| Connections - terminals: | Tunnel type terminal (top or bottom)1...25 mm² (AWG 18...AWG 4) - rigid strandedTunnel type terminal (top or bottom)1...16 mm² (AWG 18...AWG 6) - flexibleTunnel type terminal (top or bottom)1...16 mm² (AWG 18...AWG 6) - flexible with ferruleTunnel type terminal (top or bottom) - 2 cable(s) 1...10 mm² (AWG 18...AWG 8) - rigid strandedTunnel type terminal (top or bottom) - 2 cable(s) 1...10 mm² (AWG 18...AWG 8) - flexibleTunnel type terminal (top or bottom) - 2 cable(s) 1...10 mm² (AWG 18...AWG 8) - flexible with ferruleTunnel type terminal (top or bottom) - 3 cable(s) 1 mm² (AWG 18) - flexible stranded |
| Wire stripping length: | 14 mm for top or bottom connection |
| Tightening torque: | 2.5 N.m top or bottom |
| Earth-leakage protection: | Without |
| Heat dissipation: | 3.6 W at 440 V - 10 A |
|---|---|
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Pollution degree: | 3 conforming to EN/IEC 60947-2 |
| Tropicalisation: | 2 conforming to IEC 60068-22 conforming to GB 14048.2 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3606480741784 |
|---|
