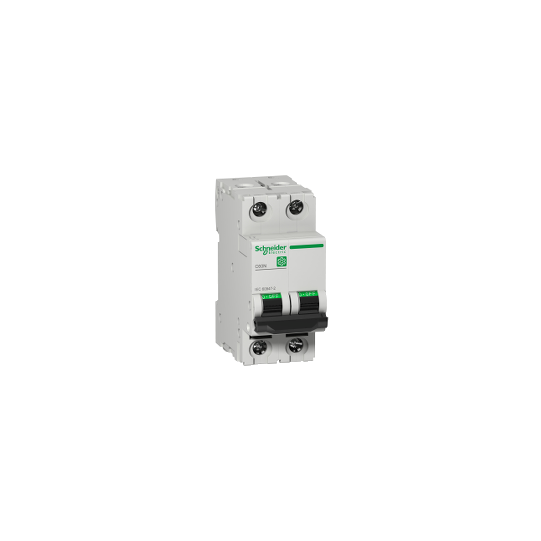

Multi9 - C60N - MCB - 2P - 6 A - C Curve - 415 V - 10 kA - M9F11206
SKU : M9F11206
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Multi9 - C60N - MCB - 2P - 6 A - C Curve - 415 V - 10 kA - M9F11206
DESCRIPTION
| Range of product: | Multi 9 |
|---|---|
| Range: | Multi 9 |
| Product name: | Multi 9 C60 |
| Product or component type: | Miniature circuit-breaker |
| Device short name: | C60N |
| Device application: | Distribution |
| Poles description: | 2P |
| Number of protected poles: | 2 |
| [In] rated current: | 6 A at 50 °C conforming to EN/IEC 60947-2 |
| Network type: | ACDC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| Breaking capacity code: | N |
| Breaking capacity: | 20 kA Icu at 10 kA Icu at 415 V AC 50/60 Hz between phases conforming to EN/IEC 60947-220 kA Icu at 240 V AC 50/60 Hz between phases conforming to EN/IEC 60947-26 kA Icu at 440 V AC 50/60 Hz between phases conforming to EN/IEC 60947-2 |
| Utilisation category: | Category A conforming to EN/IEC 60947-2 |
| Suitability for isolation: | Yes conforming to EN/IEC 60947-2 |
| Standards: | EN/IEC 60947-2 |
| Product certifications: | EACKCCCC |
| Network frequency: | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage: | 240 V AC 50/60 Hz between phases415 V AC 50/60 Hz between phases440 V AC 50/60 Hz between phases |
| Magnetic tripping limit: | 8.5 x In +/- 20 % AC12 x In +/- 20 % DC |
| [Ics] rated service breaking capacity: | 7.5 kA 75 % conforming to EN/IEC 60947-2 - 415 V AC 50/60 Hz16 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC 50/60 Hz4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz20 kA 100 % conforming to EN/IEC 60947-2 - |
| Limitation class: | 3 |
| [Ui] rated insulation voltage: | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-2 |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 4 |
| Height: | 81 mm |
| Width: | 36 mm |
| Depth: | 72 mm |
| Product weight: | 0.24 kg |
| Colour: | Grey |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 10000 cycles |
| Provision for padlocking: | Padlockable |
| Connections - terminals: | Tunnel type terminal (top or bottom)1...25 mm² - rigidTunnel type terminal (top or bottom)1...25 mm² - flexibleTunnel type terminal (top or bottom)1...25 mm² - flexible with ferrule |
| Wire stripping length: | 14 mm for top or bottom connection |
| Tightening torque: | 2 N.m top or bottom |
| Earth-leakage protection: | Separate block |
| Heat dissipation: | 5.4 W at 415 V - 6 A |
|---|---|
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Pollution degree: | 3 conforming to EN/IEC 60947-2 |
| Overvoltage category: | IV |
| Tropicalisation: | 2 conforming to IEC 60068-1 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -30...70 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480576232 |
|---|
