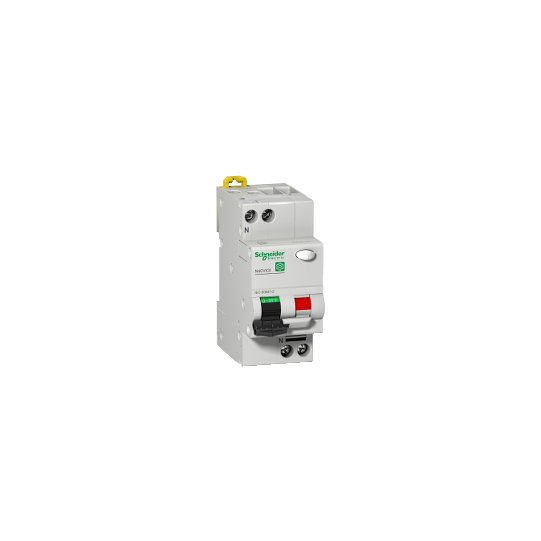

Multi9 - N40 Vigi - 1P + N - 6A - C curve - class AC - 240 V - 30 mA - 6 kA - M9D11606
SKU : M9D11606
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Multi9 - N40 Vigi - 1P + N - 6A - C curve - class AC - 240 V - 30 mA - 6 kA - M9D11606
DESCRIPTION
| Range: | Multi 9 |
|---|---|
| Product name: | Multi 9 N40 Vigi |
| Product or component type: | Residual current breaker with overcurrent protection (RCBO) |
| Device short name: | N40 Vigi |
| Device application: | Distribution |
| Poles description: | 1P + N |
| Neutral position: | Left |
| Number of protected poles: | 1 |
| [In] rated current: | 6 A at 50 °C conforming to EN/IEC 60947-2 |
| Network type: | AC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| Earth-leakage sensitivity: | 30 mA |
| Earth-leakage protection time delay: | Instantaneous |
| Earth-leakage protection class: | Type AC |
| Breaking capacity: | 6 kA Icu at 240 V AC 50 Hz conforming to EN/IEC 60947-26000 A Icn at 240 V AC 50 Hz conforming to EN/IEC 61009-1 |
| Utilisation category: | Category A conforming to EN/IEC 60947-2 |
| Suitability for isolation: | Yes conforming to EN/IEC 60947-2 |
| Network frequency: | 50 Hz |
|---|---|
| [Ue] rated operational voltage: | 240 V AC 50 Hz |
| Magnetic tripping limit: | 8.5 x In +/- 20 % AC |
| Residual current tripping technology: | Voltage independent |
| [Ics] rated service breaking capacity: | 4.5 kA 75 % conforming to EN/IEC 60947-2 - 240 V AC 50 Hz |
| Rated breaking and making capacity: | Idm 4500 A at 240 V AC 50 Hz conforming to EN/IEC 61009-1 |
| Limitation class: | 3 conforming to EN/IEC 61009-1 |
| [Ui] rated insulation voltage: | 400 V AC 50 Hz conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to EN/IEC 60947-2 |
| Surge current: | 250 A |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Local signalling: | ON/OFF indicationFault indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 4 |
| Height: | 81 mm |
| Width: | 36 mm |
| Depth: | 70 mm |
| Product weight: | 0.125 kg |
| Colour: | Grey |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 20000 cycles |
| Provision for padlocking: | Padlockable |
| Connections - terminals: | Tunnel type terminal (top or bottom)0.75...16 mm² - rigidTunnel type terminal (top or bottom)0.33...10 mm² - flexibleTunnel type terminal (top or bottom)0.33...10 mm² - flexible with ferrule |
| Wire stripping length: | 13 mm for top or bottom connection |
| Tightening torque: | 2 N.m top or bottom |
| Earth-leakage protection: | Integrated |
| Standards: | EN/IEC 61009-1EN/IEC 60947-2 |
|---|---|
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Pollution degree: | 3 conforming to EN/IEC 60947-2 |
| Overvoltage category: | IV |
| Electromagnetic compatibility: | 8/20 µs impulse withstand, 250 A |
| Tropicalisation: | 2 conforming to IEC 60068-1 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -5...60 °C |
| Ambient air temperature for storage: | -30...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480883040 |
|---|
