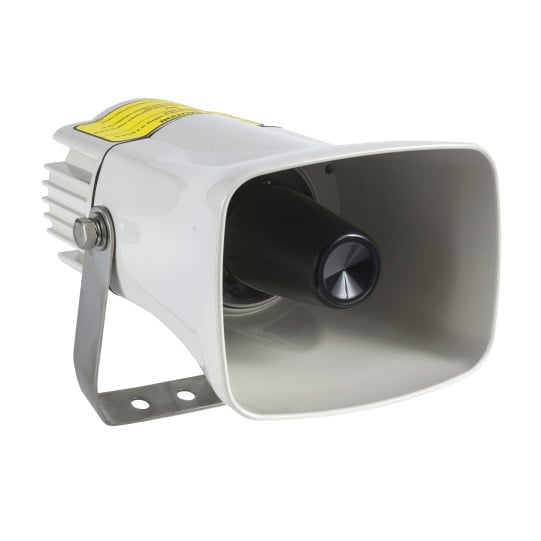

multisound siren XVS - 43 tones - 0..105 dB - white - IP53 - XVS14GMW
SKU : XVS14GMW
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
multisound siren XVS - 43 tones - 0..105 dB - white - IP53 - XVS14GMW
DESCRIPTION
| Range of product: | Harmony XVS |
|---|---|
| Product or component type: | Multisound siren |
| Device short name: | XVS |
| Colour: | White |
|---|---|
| Material: | PC (polycarbonate): back coverPC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): frontPC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): back |
| Product weight: | 1.2 kg |
| Marking: | CE |
| Mounting support: | Bracket |
| Fixing mode: | 3 holes Ø 9 mm |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| Current consumption: | 100 mA at 120 V |
| Electrical connection: | Cable: 6.5...8.5 mm, 0.33 mm² / AWG 22 (signalling circuit)Cable: 6.5...8.5 mm, 0.52 mm² / AWG 20 (power circuit) |
| Width: | 140 mm |
| Height: | 114 mm |
| Depth: | 223 mm |
| Compatibility code: | XVS |
| Signalling type: | 43 tones siren |
|---|---|
| Standards: | EN 61000-6-2EN 61000-6-3EN 60947EN 60947-5 |
| Product certifications: | UL |
| Protective treatment: | TC |
| Ambient air temperature for storage: | -35...70 °C |
| Ambient air temperature for operation: | -10...50 °C |
| Overvoltage category: | Class II conforming to EN/IEC 61140 |
| IP degree of protection: | IP53 conforming to EN/IEC 60529 |
| [Us] rated supply voltage: | 120 V AC |
| Noise level: | 0...105 dB (continuous or intermittent tone) at 1 m |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope)Mercury free |
| Code EAN: | 3606480072048 |
|---|
