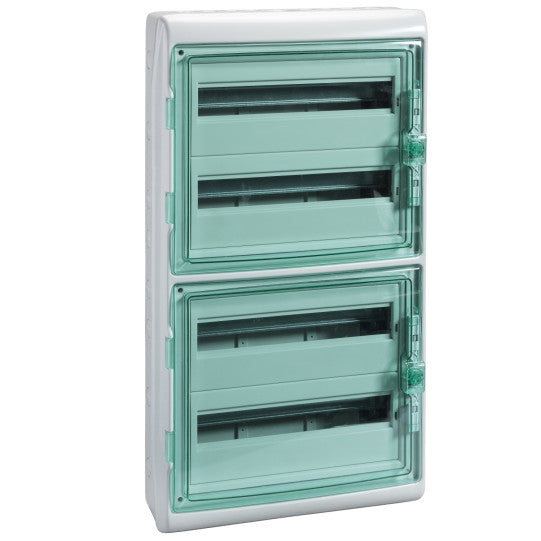

Mureva - for modular device - 4 x 18 modules - 2 terminal blocks - 13968M
SKU : 13968M
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Mureva - for modular device - 4 x 18 modules - 2 terminal blocks - 13968M
DESCRIPTION
| Range: | Mureva |
|---|---|
| Product or component type: | Weatherproof enclosure |
| Enclosure type: | Enclosure for modular device |
| Accessories included with enclosure: | 2 terminal block supports2 terminal block 32 holes4 marking kits4 wiring straps |
| Mounting plate description: | Without mounting plate |
| Enclosure mounting: | Surface |
|---|---|
| 9 mm pitches: | 36 |
| Number of 18 mm modules per row: | 18 |
| Total number of 18 mm modules: | 72 |
| Number of horizontal rows: | 4 |
| Electrical insulation class: | Class IIDouble insulation |
| Provided equipment: | 4 marking kit4 wiring strap2 terminal block 32 holes2 terminal block support |
| Type of front cover: | ReversibleTransparent |
| Power dissipation in W: | 89 W |
| [In] rated current: | 160 A |
| Type of rail: | DIN |
| Number of pre-cutouts PG ISO: | 17 |
| Number of terminal blocks: | 2 with 32 outgoers |
| Distribution block outgoers: | 32 x 10 mm²32 x 16 mm² |
| Locking options description: | Optional keylock |
| Enclosure material: | Self-extinguishing polymer |
| Width: | 448 mm |
| Height: | 842 mm |
| Depth: | 160 mm |
| Internal depth: | 88 mm |
| Colour: | Door: transparent greenEnclosure: light grey (RAL 7035) |
| Market segment: | ResidentialSmall commercial |
| Targeted country: | France |
| Standards: | EN 50102IEC 670EN 50262IEC 60529IEC 60439-3 |
|---|---|
| Fire resistance: | 750 °C conforming to IEC 60695-2-1 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK09 conforming to EN 50102 |
| Environmental characteristic: | UV resistant: class 3 conforming to ISO 4582:2010Ultraviolet degradation test conforming to ISO 4892-2:2013 |
| Overvoltage category: | II |
| Ambient air temperature for operation: | -25...60 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3303430139683 |
|---|
