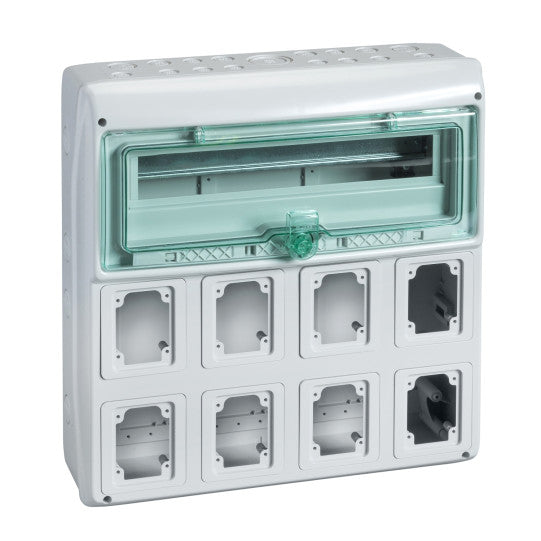

Mureva - for plug and socket - 8 openings - 1 x 18 modules - 1 terminal block - 13157M
DESCRIPTION
| Range: | Mureva |
|---|---|
| Product or component type: | Weatherproof enclosure |
| Enclosure type: | Enclosure for plug and socket |
| Accessories included with enclosure: | 2 plates for push-button controls1 terminal block 16 holes2 wiring straps1 terminal block support8 plates for 65 x 85 power outlets |
| Mounting plate description: | Without mounting plate |
| Enclosure mounting: | Surface |
|---|---|
| 9 mm pitches: | 36 |
| Number of 18 mm modules per row: | 18 |
| Total number of 18 mm modules: | 18 |
| Number of horizontal rows: | 1 |
| Electrical insulation class: | Double insulationClass II |
| Number of openings of interface: | 8 |
| Number of plates: | 2 for push-button controls8 for 65 x 85 power outlets |
| Provided equipment: | 2 wiring strap8 plate for 65 x 85 power outlet1 terminal block support2 plate for push-button control1 terminal block 16 holes |
| Type of front cover: | Transparent |
| Power dissipation in W: | 34 W |
| [In] rated current: | 90 A |
| Type of rail: | DIN |
| Number of pre-cutouts PG ISO: | 17 |
| Number of terminal blocks: | 1 with 16 outgoers |
| Locking options description: | Optional keylock |
| Enclosure material: | Self-extinguishing polymer |
| Base dimension: | 90 x 100 mm |
| Width: | 448 mm |
| Height: | 460 mm |
| Depth: | 160 mm |
| Internal depth: | 91 mm |
| Colour: | Door: transparent greenEnclosure: light grey (RAL 7035) |
| Targeted country: | France |
| Standards: | EN 50102EN 50262IEC 670IEC 60529IEC 60439-3 |
|---|---|
| Fire resistance: | 750 °C conforming to IEC 60695-2-1 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK09 conforming to EN 50102 |
| Environmental characteristic: | UV resistant: class 3 conforming to ISO 4582:2010Ultraviolet degradation test conforming to ISO 4892-2:2013 |
| Overvoltage category: | II |
| Ambient air temperature for operation: | -25...60 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3303430131571 |
|---|
