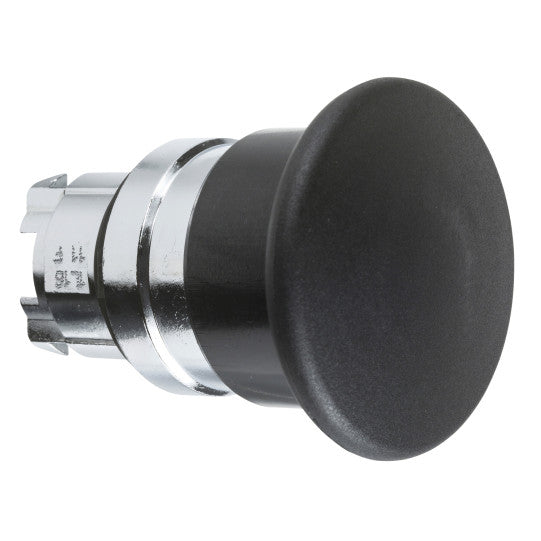

Mushroom push button head Ø40, metal, black, Ø22, spring return - ZB4BC2
SKU : ZB4BC2
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Mushroom push button head Ø40, metal, black, Ø22, spring return - ZB4BC2
DESCRIPTION
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Head for non-illuminated push-button |
| Device short name: | ZB4 |
| Bezel material: | Chromium plated metal |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Head type: | Standard |
| Shape of signaling unit head: | Round |
| Type of operator: | spring return |
| Operator profile: | Black mushroom Ø 40 mm, unmarked |
| CAD overall width: | 40 mm |
|---|---|
| CAD overall height: | 40 mm |
| CAD overall depth: | 52 mm |
| Mechanical durability: | 5000000 cycles |
| Electrical composition code: | C1 for C2 for C11 for C15 for |
| Main group: | Mushroom head |
| Group of product: | Mush. spring return non illum. |
| Cap/operator or lens colour: | Black |
| Marking: | Unmarked |
| Device presentation: | Basic element |
| GCR BRIDGE: | ZB4BCCUST01 |
| Compatibility code: | ZB4 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class I conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK06 conforming to IEC 50102 |
| Standards: | EN/IEC 60947-1EN/IEC 60947-5-5CSA C22.2 No 14EN/IEC 60947-5-4UL 508JIS C8201-5-1EN/IEC 60947-5-1JIS C8201-1 |
| Product certifications: | LROS (Lloyds register of shipping)CSAUL listedGLBVDNV |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110888430 |
|---|
