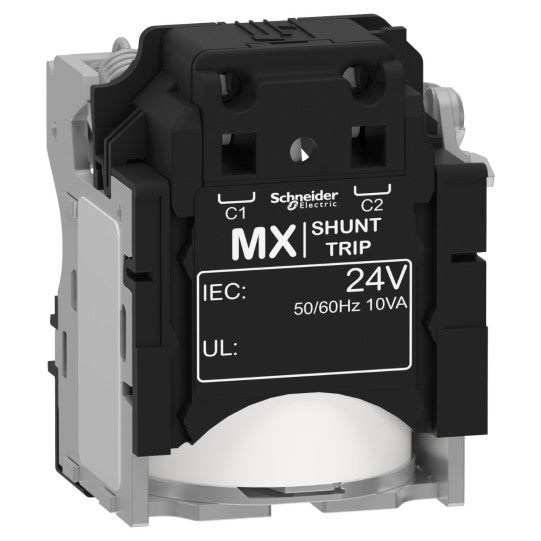

MX shunt release, ComPacT NSX, rated voltage 24 VAC 50/60 Hz, screwless spring terminal connections - LV429384
SKU : LV429384
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
MX shunt release, ComPacT NSX, rated voltage 24 VAC 50/60 Hz, screwless spring terminal connections - LV429384
DESCRIPTION
| Range: | ComPacT |
|---|---|
| Range of product: | ComPact NSX100...250ComPacT NSX100...250 new generationComPact NSX400...630ComPacT NSX400...630 new generationComPact NSX100...250 DCComPacT NSX100...250 DC new generationComPact NSX100...250 DC PVComPacT NSX100...250 DC PV new generationComPact NSX400...630 DCComPacT NSX400...630 DC new generationComPact NSX400...630 DC PVComPacT NSX400...630 DC PV new generation |
| Device short name: | MX |
| Product or component type: | Voltage release |
| Device application: | Control |
| Range compatibility: | ComPacT NSX new generationComPacT NSX DC new generationComPact NSXComPact NSX DCEasyPact CVSPowerPact Multistandard |
| Voltage release type: | Opening coilShunt trip release |
| [Uc] control circuit voltage: | 24 V AC 50/60 Hz |
| Threshold tripping voltage: | 0.7...1.1 x Un opening |
|---|---|
| Response time: | 50 ms |
| Control signal type: | MaintainedImpulse |
| Impulse duration: | >= 20 ms |
| Supply inrush power: | 10 VA |
| Auxiliary connection terminal: | Spring 0.5...1.5 mm² (AWG 20...AWG 16) |
| Wire stripping length: | 7 mm |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Reference contains Substances of Very High Concern above the threshold |
| EU RoHS Directive: | Compliant |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure: | ENVPEP2109007EN |
| Circularity Profile: | ENVEOLI2109007EN |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| PVC free: | Yes |
| Code EAN: | 3606480019067 |
|---|
