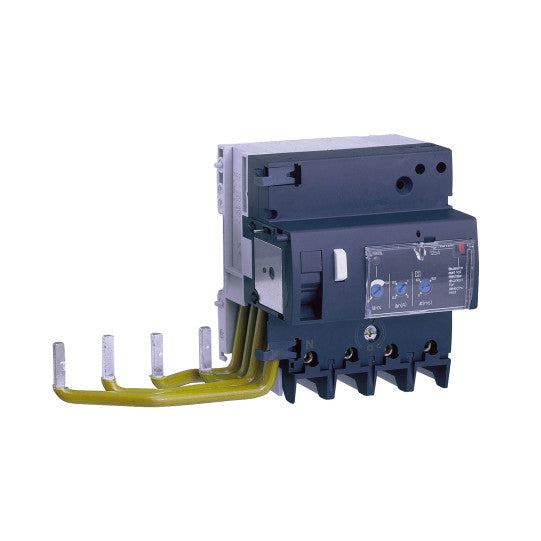

NG125 - earth leakage add-on block - Vigi NG125 - 4P - 125A - 300mA - 19048
SKU : 19048
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
NG125 - earth leakage add-on block - Vigi NG125 - 4P - 125A - 300mA - 19048
DESCRIPTION
| Range of product: | NG125 |
|---|---|
| Product or component type: | Add-on residual current devices |
| Device short name: | Vigi NG125 |
| Poles description: | 4P |
| [In] rated current: | 125 A |
| Network type: | AC |
| Earth-leakage sensitivity: | 300 mA1000 mA500 mA3000 mA |
| Earth-leakage protection time delay: | Adjustable instantaneous/selective/delayed |
| Earth-leakage protection class: | Type A |
| Quality labels: | NF |
| Device location in system: | Outgoer |
|---|---|
| Network frequency: | 50/60 Hz |
| [Ue] rated operational voltage: | 230...415 V AC 50/60 Hz |
| Residual current tripping technology: | Voltage independent |
| [Ui] rated insulation voltage: | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: | 8 kV conforming to IEC 60947-2 |
| Mounting mode: | Fixed |
| Mounting support: | 35 mm symmetrical DIN rail |
| Electrical connection to mcb: | By screws |
| 9 mm pitches: | 11 |
| Height: | 118 mm |
| Width: | 207 mm |
| Depth: | 81 mm |
| Product weight: | 0.8 kg |
| Connections - terminals: | Tunnel type terminals 10...50 mm² flexibleTunnel type terminals 16...70 mm² rigid |
| Wire stripping length: | 20 mm |
| Tightening torque: | 6 N.m |
| Product compatibility: | Single terminal |
| Market segment: | Small commercial |
| Standards: | IEC 60947-2 |
|---|---|
| IP degree of protection: | IP20 conforming to IEC 60947-2 |
| Pollution degree: | 3 conforming to IEC 60947-2 |
| Electromagnetic compatibility: | 8/20 µs impulse withstand, 5000 A conforming to IEC 60947-2 |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3303430190486 |
|---|
