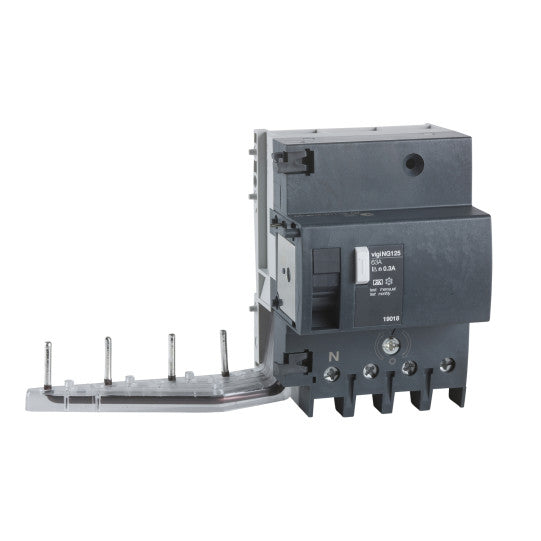

NG125 - earth leakage add-on block - Vigi NG125 - 4P - 63A - 300mA - 19034
SKU : 19034
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
NG125 - earth leakage add-on block - Vigi NG125 - 4P - 63A - 300mA - 19034
DESCRIPTION
| Range of product: | NG125 |
|---|---|
| Product or component type: | Add-on residual current devices |
| Device short name: | Vigi NG125 |
| Poles description: | 4P |
| [In] rated current: | 63 A |
| Network type: | AC |
| Earth-leakage sensitivity: | 300 mA |
| Earth-leakage protection time delay: | Selective |
| Earth-leakage protection class: | Type A |
| Device location in system: | Outgoer |
|---|---|
| Network frequency: | 50/60 Hz |
| [Ue] rated operational voltage: | 230...415 V AC 50/60 Hz |
| Residual current tripping technology: | Voltage independent |
| [Ui] rated insulation voltage: | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: | 8 kV conforming to IEC 60947-2 |
| Mounting support: | 35 mm symmetrical DIN rail |
| Electrical connection to mcb: | By screws |
| 9 mm pitches: | 9 |
| Height: | 118 mm |
| Width: | 189 mm |
| Depth: | 81 mm |
| Product weight: | 0.45 kg |
| Electrical durability: | 10000 cycles conforming to IEC 60947-2 |
| Connections - terminals: | Tunnel type terminals 1...35 mm² flexibleTunnel type terminals 1.5...50 mm² rigid |
| Wire stripping length: | 20 mm |
| Tightening torque: | 3.5 N.m |
| Product compatibility: | Single terminal |
| Compatibility code: | Vigi NG125 |
| Market segment: | Small commercial |
| Standards: | IEC 60947-2 |
|---|---|
| IP degree of protection: | IP40 conforming to IEC 60947-2 |
| Pollution degree: | 3 conforming to IEC 60947-2 |
| Electromagnetic compatibility: | 8/20 µs impulse withstand, 5000 A conforming to IEC 60947-2 |
| Tropicalisation: | 2 conforming to IEC 60068-1 |
| Relative humidity: | 95 % at 55 °C |
| Operating altitude: | 2000 m |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3303430190349 |
|---|
