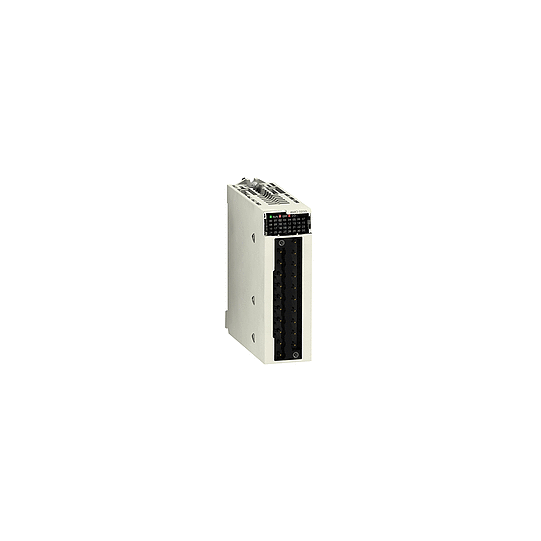

non-isolated analog input module X80 - 8 inputs - fast speed - BMXAMI0800
SKU : BMXAMI0800
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
non-isolated analog input module X80 - 8 inputs - fast speed - BMXAMI0800
DESCRIPTION
| Range of product: | Modicon X80 |
|---|---|
| Product or component type: | Analog input module |
| Electrical connection: | 28 ways 1 connector |
| Input output isolation: | Non isolated |
| Input level: | High level |
| Analogue input number: | 8 |
| Analogue input type: | Current +/- 20 mACurrent 0...20 mACurrent 4...20 mAVoltage +/- 10 VVoltage +/- 5 VVoltage 0...10 VVoltage 0...5 VVoltage 1...5 V |
| Analog/digital conversion: | 16 bits |
|---|---|
| Analogue input resolution: | 15 bits + sign |
| Permitted overload on inputs: | +/- 30 mA 0...20 mA+/- 30 mA 4...20 mA+/- 30 V +/- 10 V+/- 30 V +/- 5 V+/- 30 V 0...10 V+/- 30 V 0...5 V+/- 30 V 1...5 V+/- 30 mA +/- 20 mA |
| Input impedance: | 10 MOhm in voltage mode250 Ohm in current mode |
| Precision of internal conversion resistor: | 0.1 % - 15 ppm/°C |
| Type of filter: | First order digital filtering |
| Fast read cycle time: | 1 ms + 1 ms x number of channels used |
| Nominal read cycle time: | 9 ms for 8 channels |
| Measurement error: | 0.15 % of full scale +/- 20 mA 25 °C0.15 % of full scale 0...20 mA 25 °C0.15 % of full scale 4...20 mA 25 °C0.075 % of full scale +/- 10 V 25 °C0.075 % of full scale 0...10 V 25 °C0.075 % of full scale 0...5 V 25 °C0.075 % of full scale 1...5 V 25 °C0.075 % of full scale +/- 5 V 25 °C |
| Temperature drift: | 30 ppm/°C +/- 10 V30 ppm/°C +/- 5 V30 ppm/°C 0...10 V30 ppm/°C 0...5 V30 ppm/°C 1...5 V50 ppm/°C +/- 20 mA50 ppm/°C 0...20 mA50 ppm/°C 4...20 mA |
| Recalibration: | Factory calibrated |
| Minimum crosstalk attenuation: | 80 dB |
| Common mode rejection: | 100 dB |
| Digital value format: | - 32768 to + 32767 in maximum user scale+/- 10000 by default |
| Isolation voltage: | 1400 V DC between channels and ground1400 V DC between channels and bus50 V DC between channels |
| Measurement resolution: | 0.36 mV +/- 10 V0.36 mV 0...10 V0.36 mV 0...5 V0.36 mV 1...5 V0.36 mV +/- 5 V1.4 µA +/- 20 mA1.4 µA 0...20 mA1.4 µA 4...20 mA |
| Maximum conversion value: | +/- 11.4 V +/- 10 V+/- 11.4 V 0...10 V+/- 11.4 V 0...5 V+/- 11.4 V 1...5 V0...30 mA +/- 20 mA0...30 mA 0...20 mA0...30 mA 4...20 mA0...30 mA +/- 5 V |
| Operating altitude: | 0...2000 m2000...5000 m with derating factor |
| Status LED: | 1 LED (green)RUN1 LED per channel (green)channel diagnostic1 LED (red)ERR1 LED (red)I/O |
| Product weight: | 0.165 kg |
| Power consumption in W: | 0.90 W 24 V DC typical1.10 W 24 V DC maximum0.32 W 3.3 V DC typical0.48 W 3.3 V DC maximum |
| Vibration resistance: | 3 gn |
|---|---|
| Shock resistance: | 30 gn |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | 0...60 °C |
| Relative humidity: | 5...95 % at 55 °C without condensation |
| IP degree of protection: | IP20 |
| Directives: | 2014/35/EU - low voltage directive2014/30/EU - electromagnetic compatibility |
| Product certifications: | CERCMCSAEACMerchant NavyUL |
| Standards: | EN/IEC 61010-2-201EN/IEC 61131-2UL 61010-2-201CSA C22.2 No 61010-2-201 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3595864081557 |
|---|
