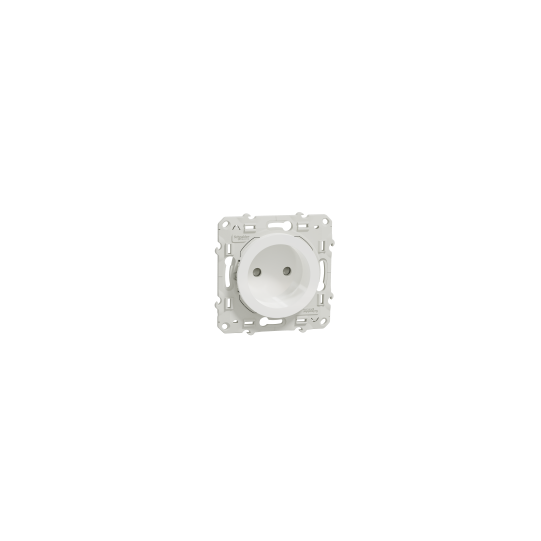

Odace, 1 socket-outlet, 2P, shuttered, 16 A, white - S520033
SKU : S520033
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Odace, 1 socket-outlet, 2P, shuttered, 16 A, white - S520033
DESCRIPTION
| Range: | Odace |
|---|---|
| Range of product: | Odace |
| Product or component type: | Socket-outlet |
| Device presentation: | Mechanism with plastic fixing frame |
| Socket number: | 1 |
| Type of packing: | Paint cover |
| Quantity per set: | Set of 5 |
| Number of terminals: | 2 |
| Main colour tint: | White |
| Device mounting: | Flush |
|---|---|
| Outlet poles configuration: | 2P |
| Cover type: | With shutter |
| Outlet standard: | Universal |
| Fixing mode: | By screws |
| Colour tint: | White (RAL 9003) |
| Surface finish: | Glossy |
| Rated current: | 16 A |
| [Ue] rated operational voltage: | 250 V |
| Network type: | AC |
| Network frequency: | 50 Hz |
| Service life in cycles: | 5000 cycles |
| Electrical durability: | 5000 cycles |
| Connections - terminals: | Screw terminals |
| Shape of screw head: | Pozidriv No 1 |
| Clamping connection capacity: | 1 x 1.5...2 x 4 mm² for rigid cable(s)1 x 1.5...2 x 4 mm² for stranded cable(s)1 x 1.5...2 x 4 mm² for flexible cable(s) |
| Wire stripping length: | 12 mm |
| Material: | ASA + PC: mechanism coverPBT (polybutylene terephthalate) GF30: support framePC (polycarbonate) GF10 FR: casing |
| Height: | 71 mm |
| Width: | 71 mm |
| Depth: | 42.5 mm |
| Embedding depth: | 26.5 mm |
| Net weight: | 0.041 kg |
| Targeted channel: | Professional |
| Resistance to chemical agents: | Resistant to alcohol (70 %)Resistant to alcohol (96 %)Resistant to A-Lactic AcidResistant to diluted quaternary ammoniumResistant to diluted bleachResistant to diluted ammoniaResistant to soapy waterResistant to crystal cleanerResistant to hydrogen peroxide 10 volumesResistant to hexane |
| Ambient air temperature for storage: | -5...50 °C |
|---|---|
| Dielectric strength: | 2000 V |
| Ambient air temperature for operation: | 5...35 °C |
| Standards: | NF C 61-314UNE 20315-1-1UNE 20315-1-2 |
| Product certifications: | AENOR: 030/2210LCIE: NF 603415ANF |
| IK degree of protection: | IK04 |
| IP degree of protection: | IP21D |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480316401 |
|---|---|
| Substitution_texte: | Product not available. Here is the equivalent reference that we offer : Odace, 2P+T socket outlet White, screw connection - S520039 |
