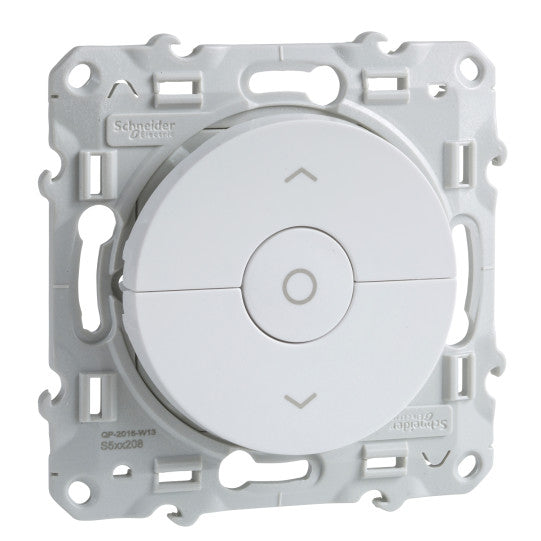

Odace, rocker switch, 3 positions, 6 AX, white - S520208
SKU : S520208
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Odace, rocker switch, 3 positions, 6 AX, white - S520208
DESCRIPTION
| Range: | Odace |
|---|---|
| Range of product: | Odace |
| Product or component type: | Switch |
| Device presentation: | Mechanism with plastic fixing frame |
| Switch application: | Roller blind |
| Switch additional information: | Mechanical and electrical interlock between up/down |
| Type of packing: | Paint cover |
| Quantity per set: | Set of 5 |
| Main colour tint: | White |
| Device mounting: | Flush |
|---|---|
| Switch function: | 3 positions |
| Number of rocker: | 3 |
| Actuator: | Rocker |
| Fixing mode: | By screws |
| Colour tint: | White (RAL 9003) |
| Surface finish: | Glossy |
| Rated current: | 6 AX at 250 V AC 50/60 Hz |
| Minimum load breaking capacity: | 200 operations 1.25 In and 1.1 Un |
| Number of terminals: | 3 screwless terminals |
| Shape of screw head: | Pozidriv No 1 |
| Clamping connection capacity: | 1 x 1.5...2 x 2.5 mm² for rigid cable(s)1 x 1.5...2 x 2.5 mm² for flexible cable(s)1 x 1.5...2 x 2.5 mm² for stranded cable(s) |
| Wire stripping length: | 12 mm |
| Material: | Thermoplastic ABS-UV stabilised: centre platePBT (polybutylene terephthalate) GF30: support framePC (polycarbonate) GF10 FR: casing |
| Height: | 71 mm |
| Width: | 71 mm |
| Depth: | 43 mm |
| Embedding depth: | 31.2 mm |
| Product weight: | 0.048 kg |
| Targeted channel: | Professional |
| Resistance to chemical agents: | Resistant to alcohol (70 %)Resistant to alcohol (96 %)Resistant to A-Lactic AcidResistant to diluted quaternary ammoniumResistant to diluted bleachResistant to diluted ammoniaResistant to soapy waterResistant to crystal cleanerResistant to hydrogen peroxide 10 volumesResistant to hexane |
| Ambient air temperature for storage: | -5...50 °C |
|---|---|
| Dielectric strength: | 2000 V |
| Ambient air temperature for operation: | 5...35 °C |
| Standards: | 2006/95/EECEN 60669-1 |
| IK degree of protection: | IK04 |
| IP degree of protection: | IP21D |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480318023 |
|---|
