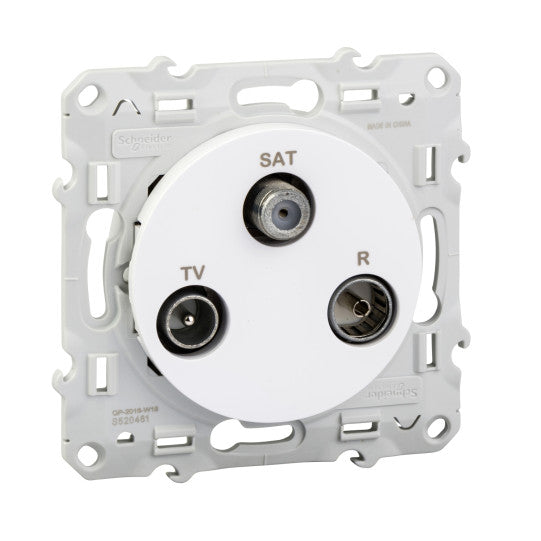

Odace, TV/SAT/R socket, white - S520461
DESCRIPTION
| Range: | Odace |
|---|---|
| Range of product: | Odace |
| Product or component type: | TV/SAT/R socket |
| Device presentation: | Mechanism with plastic fixing frame |
| Type of packing: | Paint cover |
| Quantity per set: | Set of 5 |
| Main colour tint: | White |
| Device mounting: | Flush |
|---|---|
| TV connector: | Male IEC 9.52 mm |
| Radio connector: | Female IEC 9.52 mm |
| SAT connector: | F type |
| Number of inputs: | 1 |
| Maximum branch attenuation: | 3 dB SAT signal950...2400 MHz3 dB TV signal125...862 MHz2.5 dB R signal5...108 MHz |
| Minimum return loss: | 10 dB IN-OUT10 dB TV12 dB R10 dB SAT |
| DC current flow: | In SAT socket |
| Fixing mode: | By screws |
| Colour tint: | White (RAL 9003) |
| Surface finish: | Glossy |
| Rated current: | 350 mA at 24 V DC |
| Connections - terminals: | Screw |
| Shape of screw head: | Pozidriv No 1 |
| Wire stripping length: | 8 mm |
| Type of cable: | Coaxial |
| Cable outer diameter: | 7 mm |
| Material: | Thermoplastic ABS-UV stabilised: centre platePBT (polybutylene terephthalate) GF30: support frameZinc alloy: casing |
| Height: | 71 mm |
| Width: | 71 mm |
| Depth: | 40 mm |
| Embedding depth: | 24 mm |
| Product weight: | 0.0634 kg |
| Targeted channel: | Professional |
| Resistance to chemical agents: | Resistant to alcohol (70 %)Resistant to alcohol (96 %)Resistant to A-Lactic AcidResistant to diluted quaternary ammoniumResistant to diluted bleachResistant to diluted ammoniaResistant to soapy waterResistant to crystal cleanerResistant to hydrogen peroxide 10 volumesResistant to hexane |
| Ambient air temperature for storage: | -5...50 °C |
|---|---|
| Ambient air temperature for operation: | 5...45 °C |
| Standards: | EN 50083-4 |
| IK degree of protection: | IK04 |
| IP degree of protection: | IP21D |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3606480319105 |
|---|
