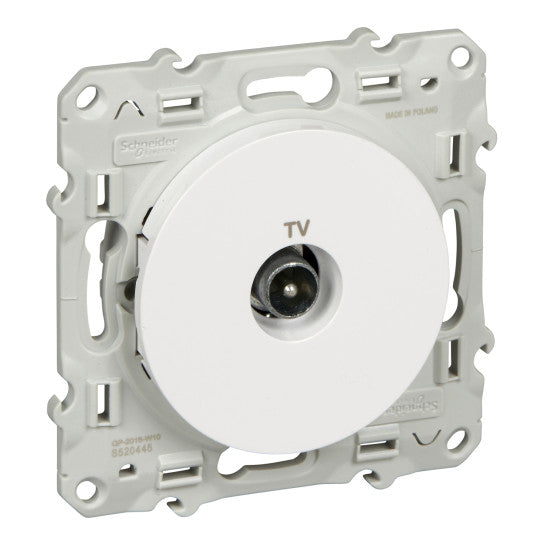

Odace, TV socket, white - S520445
SKU : S520445
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Odace, TV socket, white - S520445
DESCRIPTION
| Range: | Odace |
|---|---|
| Range of product: | Odace |
| Product or component type: | TV single shield |
| Device presentation: | Mechanism with plastic fixing frame |
| Type of packing: | Paint cover |
| Quantity per set: | Set of 10 |
| Main colour tint: | White |
| Device mounting: | Flush |
|---|---|
| TV connector: | Male IEC 9.52 mm |
| Path attenuation: | 1.5 dB TV signal5...1800 MHz2.5 dB TV signal1800...2150 MHz |
| Number of inputs: | 1 |
| Fixing mode: | By screws |
| Colour tint: | White (RAL 9003) |
| Surface finish: | Glossy |
| Connections - terminals: | Screw |
| Shape of screw head: | Pozidriv No 1 |
| Wire stripping length: | 8 mm |
| Type of cable: | Coaxial |
| Cable outer diameter: | 7 mm |
| Material: | Thermoplastic ABS-UV stabilised: centre platePBT (polybutylene terephthalate) GF30: support frameZinc alloy: casing |
| Height: | 71 mm |
| Width: | 71 mm |
| Depth: | 34.1 mm |
| Embedding depth: | 18.1 mm |
| Product weight: | 0.041 kg |
| Resistance to chemical agents: | Resistant to alcohol (70 %)Resistant to alcohol (96 %)Resistant to A-Lactic AcidResistant to diluted quaternary ammoniumResistant to diluted bleachResistant to diluted ammoniaResistant to soapy waterResistant to crystal cleanerResistant to hydrogen peroxide 10 volumesResistant to hexane |
| Ambient air temperature for storage: | -5...50 °C |
|---|---|
| Ambient air temperature for operation: | 5...45 °C |
| Standards: | EN 50083-4 |
| IK degree of protection: | IK04 |
| IP degree of protection: | IP21D |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3606480319013 |
|---|
