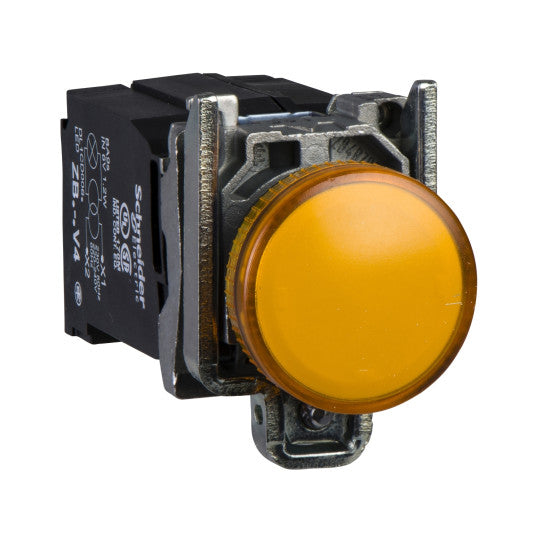

orange complete pilot light Ø22 plain lens with integral LED 400V - XB4BV5B5
SKU : XB4BV5B5
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
orange complete pilot light Ø22 plain lens with integral LED 400V - XB4BV5B5
DESCRIPTION
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Pilot light |
| Device short name: | XB4 |
| Bezel material: | Chromium plated metal |
| Fixing collar material: | Zamak |
| Head type: | Standard |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Cap/operator or lens colour: | Orange |
| Operator additional information: | With plain lens |
| Light source: | Protected LED |
| Bulb base: | Integral LED |
| Light block supply: | Via transformer 1.2 VA 24 V |
| Light source colour: | Orange |
| [Us] rated supply voltage: | 400 V AC at 50 Hz |
| CAD overall width: | 40 mm |
|---|---|
| CAD overall height: | 47 mm |
| CAD overall depth: | 90 mm |
| Product weight: | 0.172 kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| Signalling type: | Steady |
| [Us] rated supply voltage: | 400 V |
| Service life: | 100000 h at rated voltage and 25 °C |
| Surge withstand: | 1 kV conforming to IEC 61000-4-5 |
| Device presentation: | Complete product |
| Customizable: | Yes |
| Customizable: | 1 |
| GCR BRIDGE: | XB4BVCUST01 |
| Compatibility code: | XB4 |
| Supply voltage limits: | 407...423 V AC |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...55 °C |
| Electrical shock protection class: | Class I conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK06 conforming to IEC 50102 |
| Standards: | UL 508EN/IEC 60947-5-1JIS C8201-5-1EN/IEC 60947-5-4CSA C22.2 No 14EN/IEC 60947-1EN/IEC 60947-5-5JIS C8201-1 |
| Product certifications: | UL listedCSA |
| Vibration resistance: | 2 gn (f= 12...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 15 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients: | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields: | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge: | 6 kV on contact (on metal parts) conforming to IEC 61000-4-28 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission: | Class B conforming to IEC 55011 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119039512 |
|---|
