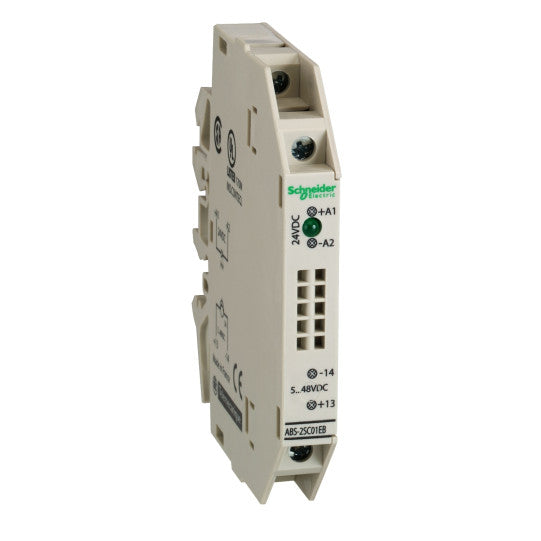

output interface module - 9.5 mm - solid state - 24..48 V DC - 2 A - ABS2SC01EB
SKU : ABS2SC01EB
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
output interface module - 9.5 mm - solid state - 24..48 V DC - 2 A - ABS2SC01EB
DESCRIPTION
| Range of product: | Interface for discrete signals |
|---|---|
| Product or component type: | Slim solid state output interface module |
| Contacts type and composition: | 1 NC |
| [Uc] control circuit voltage: | 24 V |
| Control circuit type: | DC |
| Maximum [In] rated current: | 12 mA |
| Reverse polarity protection: | Control circuit: internalOutput circuit: internal |
| Short-circuit protection: | 3.15 A external fuse fast blow (Ik |
| [Ith] conventional free air thermal current: | 2 A at 40 °C |
| Local signalling: | Green mechanical indicator for position of contacts and 1 green LED control signal state |
| Sale per indivisible quantity: | 5 |
| Width pitch dimension: | 9.5 mm |
| Control circuit voltage limits: | 28.8 V |
|---|---|
| Voltage state 1 guaranteed: | 16.9 V |
| Current state 1 guaranteed: | 7.7 mA |
| Voltage state 0 guaranteed: | 5.6 V |
| Current state 0 guaranteed: | 2 mA |
| [Ue] rated operational voltage: | 5...48 V |
| Output circuit type: | DC |
| Rated operational voltage limits: | |
| [Ie] rated operational current: | 1.5 A DC-12 vertical position, single product conforming to IEC 60947-5-11.5 A DC-13 vertical position, single product conforming to IEC 60947-5-10.6 A DC-14 vertical position, single product conforming to IEC 60947-5-10.6 A DC-14 vertical position, touching product conforming to IEC 60947-5-10.9 A DC-12 vertical position, touching product conforming to IEC 60947-5-10.9 A DC-13 vertical position, touching product conforming to IEC 60947-5-1 |
| Minimum switching current: | 1 mA |
| Maximum residual current: | 1 mA |
| Drop-out voltage: | 1.5 V |
| Response time: | |
| Switching frequency: | |
| [Ui] rated insulation voltage: | 250 V conforming to VDE 0110 group C300 V conforming to IEC 60947-1 |
| Flame retardance: | V0 conforming to UL 94 |
| Cable cross section: | 0.6...2.5 mm², 1 or 2 wires flexible without cable end screw clamp terminal0.27...4 mm², 1 wire rigid0.34...2.5 mm², 1 or 2 wires flexible with cable end |
| Operating position: | Any position |
| Installation category: | II conforming to IEC 60947-1 |
| Mounting support: | Symmetrical DIN railAsymmetrical DIN railCombination rail |
| Product weight: | 0.34 kg |
| Dielectric strength: | 2500 V between wired interface and earth for 1 minute4000 V between I/O for 1 minute |
|---|---|
| Standards: | IEC 60947-5-1 |
| Product certifications: | ULLROS (Lloyds register of shipping)DNVBVCSA |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Protective treatment: | TC |
| Fire resistance: | 960 °C conforming to IEC 60695-2-1 |
| Shock resistance: | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance: | 5 gn conforming to IEC 60068-2-6 (f = 10...150 Hz) |
| Electromagnetic compatibility: | Electromagnetic field immunity test: level 3 10 V/m between 27...1000 MHz conforming to IEC 61000-4-3Electrostatic discharge immunity test: level 3 8 kV conforming to IEC 61000-4-2Fast transients immunity test: level 3 on input/output 1 kV conforming to IEC 61000-4-4Fast transients immunity test: level 3 on power supply 2 kV conforming to IEC 61000-4-41.2/50 µs shock waves immunity test conforming to IEC 60947-1 |
| Ambient air temperature for operation: | -25...70 °C at Us-5...55 °C unrestricted operation |
| Ambient air temperature for storage: | -40...80 °C |
| Operating altitude: | |
| Pollution degree: | 2 conforming to IEC 60947-1 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3389110651515 |
|---|
