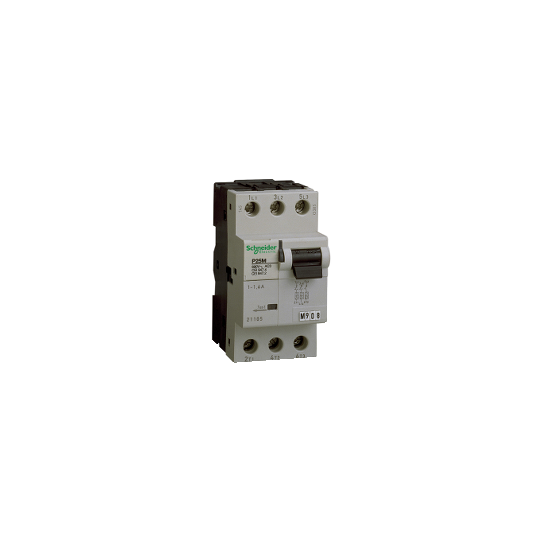

P25M - circuit breaker - P25M - 3P - 1A - curve - 21104
DESCRIPTION
| Range of product: | P25M |
|---|---|
| Range: | Acti9 |
| Product name: | P25M |
| Product or component type: | Miniature circuit-breaker |
| Device short name: | P25M |
| Device application: | Motor |
| Poles description: | 3P |
| Number of protected poles: | 3 |
| [In] rated current: | 1 A |
| Network type: | AC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | K |
| Utilisation category: | AC-3 conforming to IEC 60947-2 |
| Suitability for isolation: | Yes conforming to IEC 60947-2 |
| Network frequency: | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage: | 440 V AC 50/60 Hz230...240 V AC 50/60 Hz400...415 V AC 50/60 Hz500 V AC 50/60 Hz690 V AC 50/60 Hz |
| Magnetic tripping limit: | 12 x In |
| [Ui] rated insulation voltage: | 690 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Contact position indicator: | Yes |
| Control type: | Manual tripping testToggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 5 |
| Height: | 89 mm |
| Width: | 45 mm |
| Depth: | 70 mm |
| Net weight: | 0.26 kg |
| Electrical durability: | AC-3: 100000 cycles AC 50/60 Hz conforming to IEC 60947-2 |
| Provision for padlocking: | Padlockable |
| Locking options description: | Integrated padlocking |
| Connections - terminals: | Clamps terminal2 cable(s) 1...6 mm² rigidClamps terminal2 cable(s) 1...6 mm² flexible |
| Tightening torque: | 1.7 N.m |
| Earth-leakage protection: | Without |
| Compatibility code: | P25M |
| Standards: | EN/IEC 60947-2 |
|---|---|
| Product certifications: | CEBECDEMKOSEMKOFIMKONEMKO |
| Overvoltage category: | III |
| Tropicalisation: | 2 conforming to IEC 60947-2 |
| Relative humidity: | 95 % at 55 °C |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -20...60 °C |
| Ambient air temperature for storage: | -40...80 °C |
| REACh Regulation: | Reference contains Substances of Very High Concern above the thresholdEU RoHS Directive |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3303430211044 |
|---|
