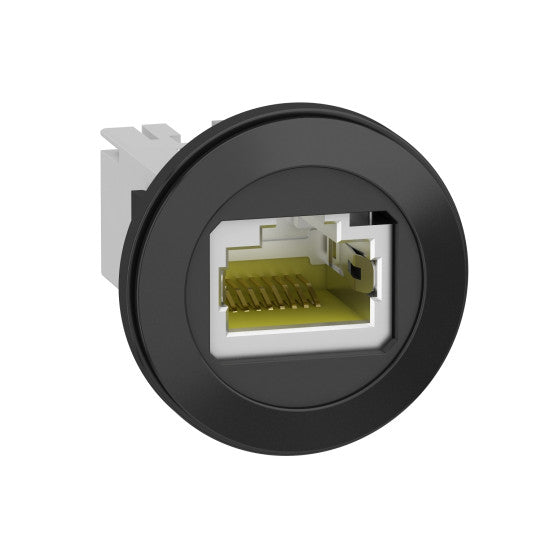

Panel mounted RJ45 port, plastic, Ø22, for ethernet interface, RJ45 jack - XB5PRJ45
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Panel mounted RJ45 port |
| Device short name: | XB5P |
| Sale per indivisible quantity: | 1 |
|---|---|
| Mounting diameter: | 22 mm |
| Thickness: | 6 mm without protection cover1.5...5 mm with protection cover plastic1.5...5 mm with protection cover rigid plastic1.5...2.5 mm with protection cover metal |
| Bezel material: | Plastic |
| Fixing collar material: | Plastic |
| Integrated connection type: | RJ45 Ethernet 10 Gbit/s |
| Minimum number of matings: | 750 cycles |
| IP degree of protection: | IP20 front: conforming to IEC 60529IP20 back: conforming to IEC 60529 |
| Ambient air temperature for operation: | -40...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Tightening torque: | 1.5 N.m |
| Vibration resistance: | 5 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Standards: | IEC 60603-7 |
| Product certifications: | UL listedCSA |
| Height: | 28 mm |
| Width: | 28 mm |
| Depth: | 36 mm |
| Product weight: | 0.0266 kg |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
|---|---|
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | X |
| Environmental Disclosure: | ENVPEP1710010EN |
| Circularity Profile: | ENVEOLI1710010EN |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Code EAN: | 3606481194213 |
|---|
